Dakota Digital - Flush Mounted Camera - CAM-2000

The Dakota Digital CAM-1000 and CAM-2000 allow you to add reverse backup video to your GRFX System, with a simple plug-in connection!  Both the CAM-1000 and CAM-2000 offer an expansive 170 degree horizontal view, giving you great visibility behind the vehicle while backing up.  Wired connection from the camera will be routed to the GRFX instrument system, plugging directly into the rear side of the display panel. 29' of cable length will stretch through the longest of vehicles with ease.

The CAM-1000 is a surface mount camera which allows a flexible mounting angle in many locations at the rear of the vehicle.  This tiny camera measures .830” in both length and width and 1.100” deep.  The pivoting mounting bracket has a footprint of 1.400” x .790”.  Double-sided tape is attached to the bracket for mounting, or utilize the included screws for a permanent installation.  The CAM-1000 can be added to the CAM-BKT-1 (below).

CAM-BKT-1 is a license plate bracket (US standard 7” bolt hole centers) which simplifies the installation of the CAM-1000.  Remove the two top license plate screws and slip this bracket underneath for a quick and easy mounting location!  Black powdercoated finish offers a discreet look.

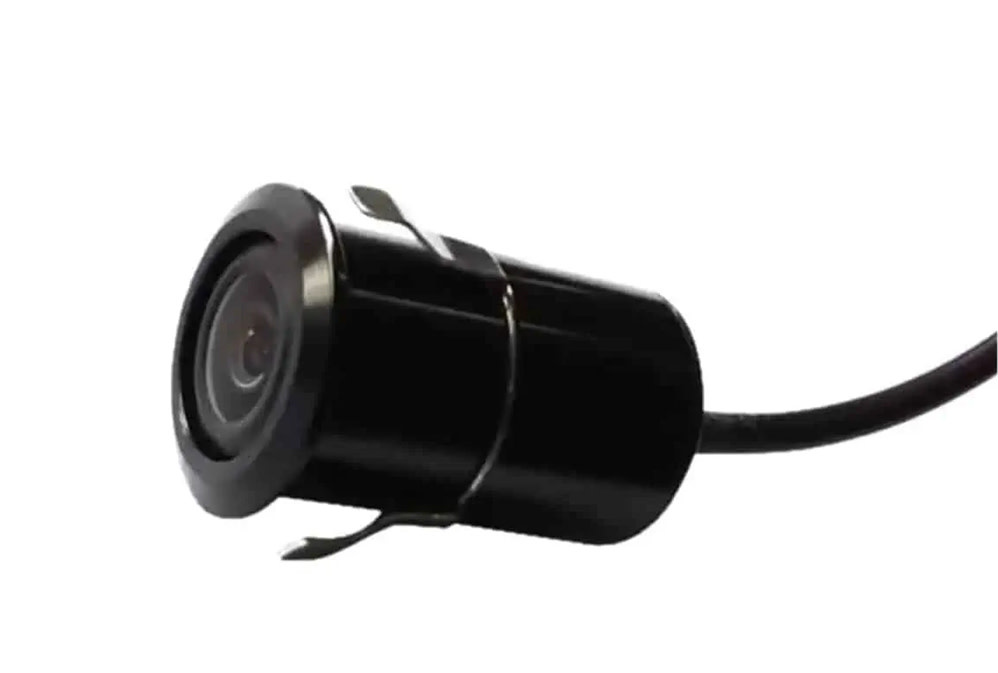

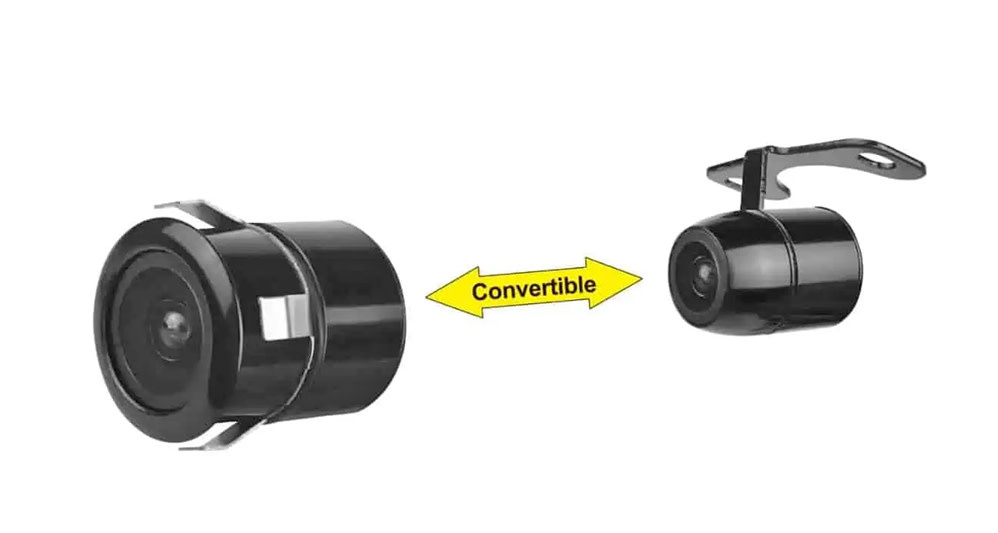

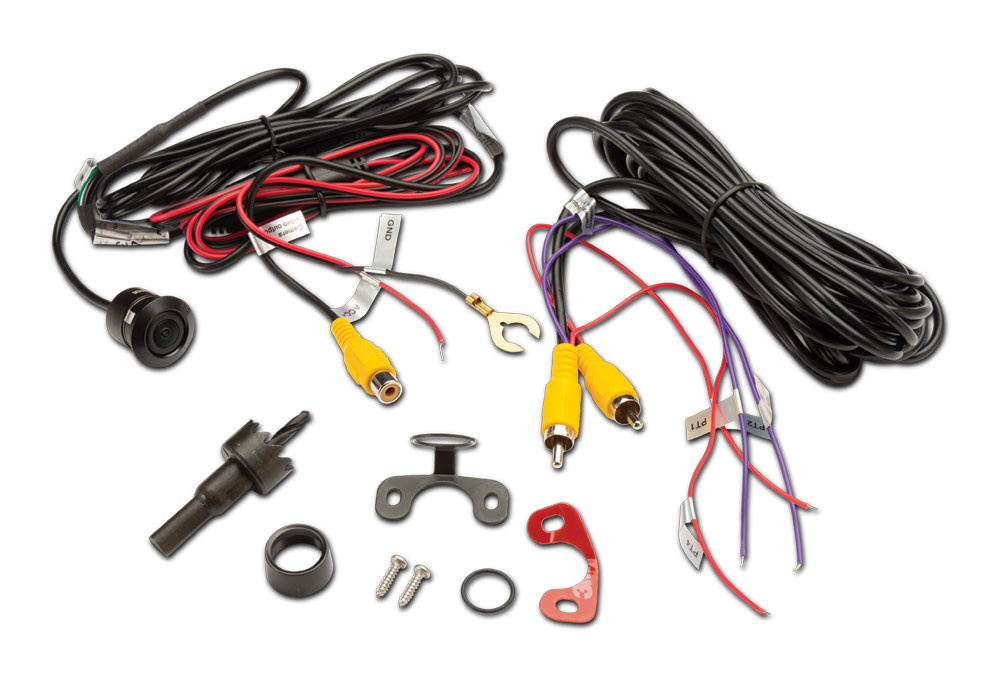

CAM-2000 is a flush mount camera, designed to really disguise the installation.  This requires a .740” cutout (and includes a perfect-fit holesaw) and has a .900” overall bezel diameter.  The CAM-2000 is a tidy 1” deep and even includes a surface mounting housing and bracket, if you opt to not place this camera through the surface.

*Only for use with Dakota Digital GRFX Series

CAM-2000: Flush Mounted Camera Manual
