Kwik Performance - Compact AC Bracket for Truck/LS3 Camaro Balancer - SD7B10 Compressor- K10700

Genuine Kwik Performance Compact AC Bracket for Truck/LS3 Camaro Balancer - SD7B10 Compressor- K10700

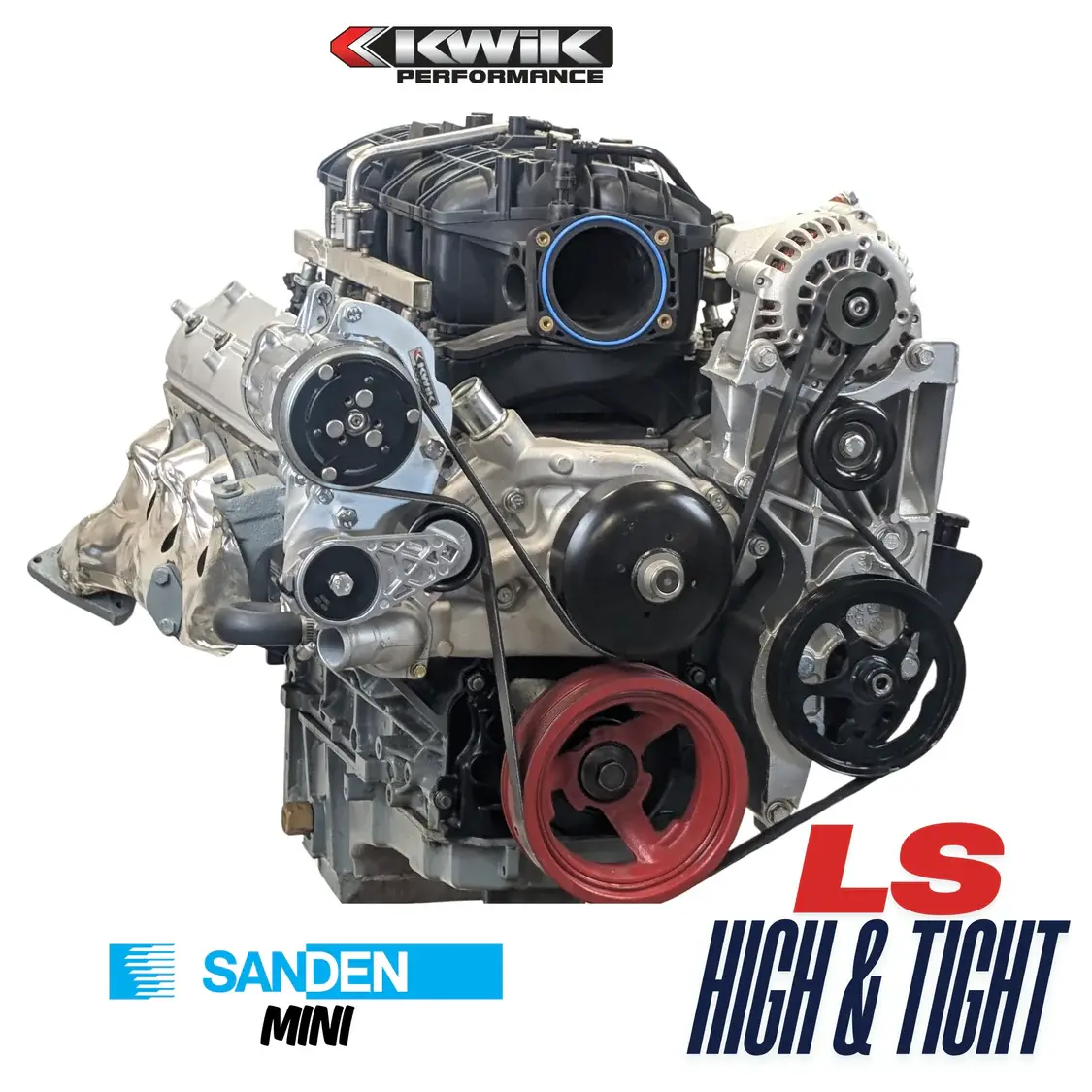

This bracket mounts the Sanden mini compressor “High and Tight” on LS engines with Truck/SUV (1999-2013) and Camaro (2010-15) crank pulley / water pump spacing. The K10700 is a narrow AC bracket that mounts the “mini” Sanden SD7B10 (7176) compressor in front of the passenger’s side cylinder head. The system is driven by one main 6-rib serpentine belt.

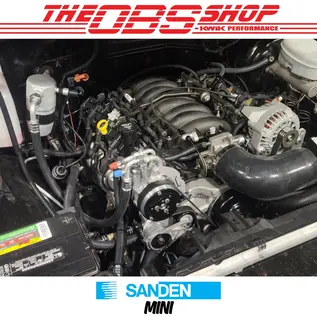

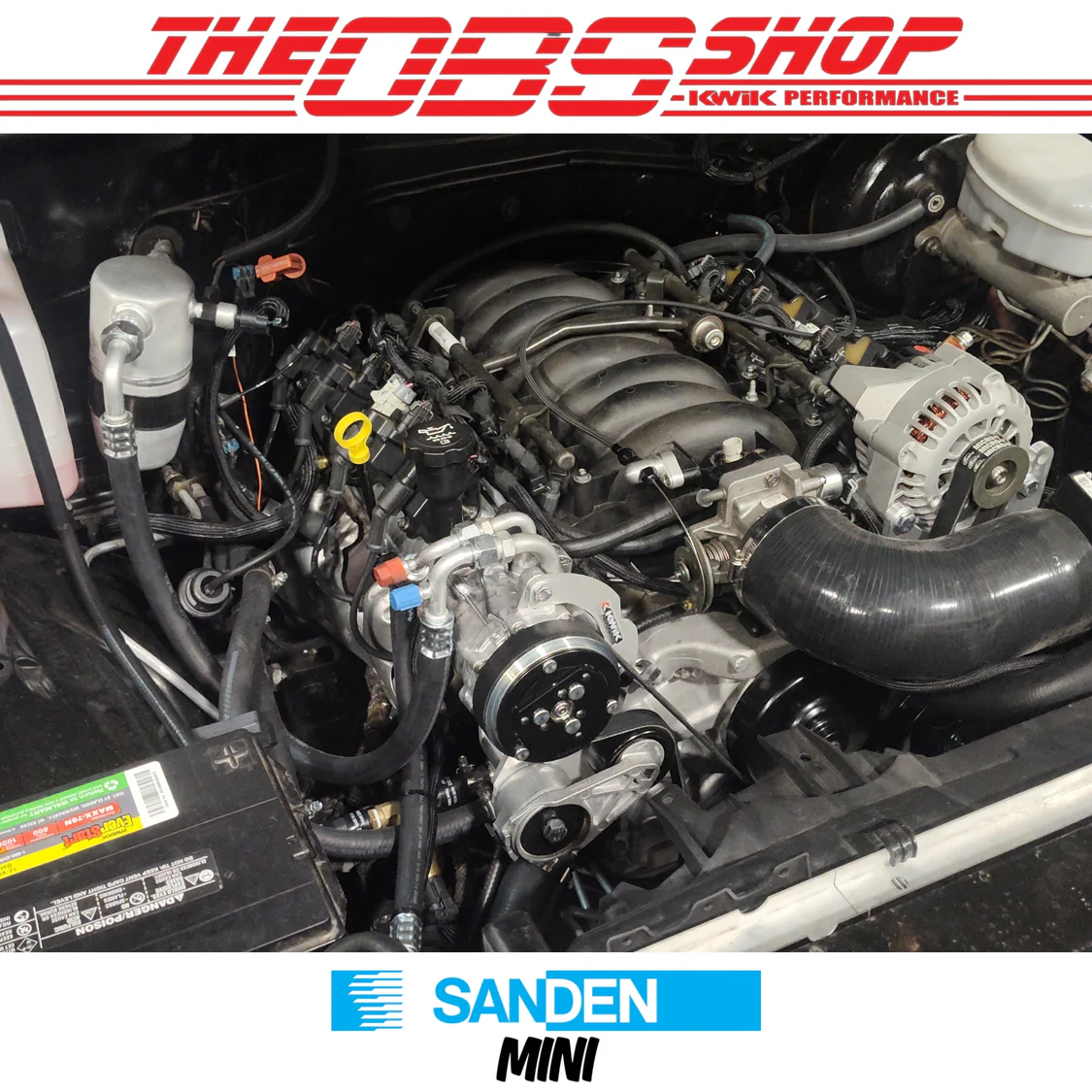

This configuration is a perfect solution for 5.3L and 6.0L LS swaps in C10s and OBS trucks. This AC bracket works with your GM alternator/power-steering bracket. This AC bracket also allows you to swap to an LS1/LS2/LS3 low rise intake manifold. All you have to do is modify the GM bracket and add our K10618 LS Truck Idler Relocation. Or if you want a really clean install, use our K10611 LS High and Tight Alt/PS (P-series) Bracket.

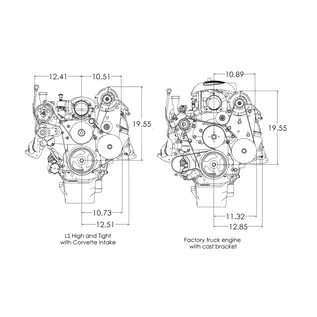

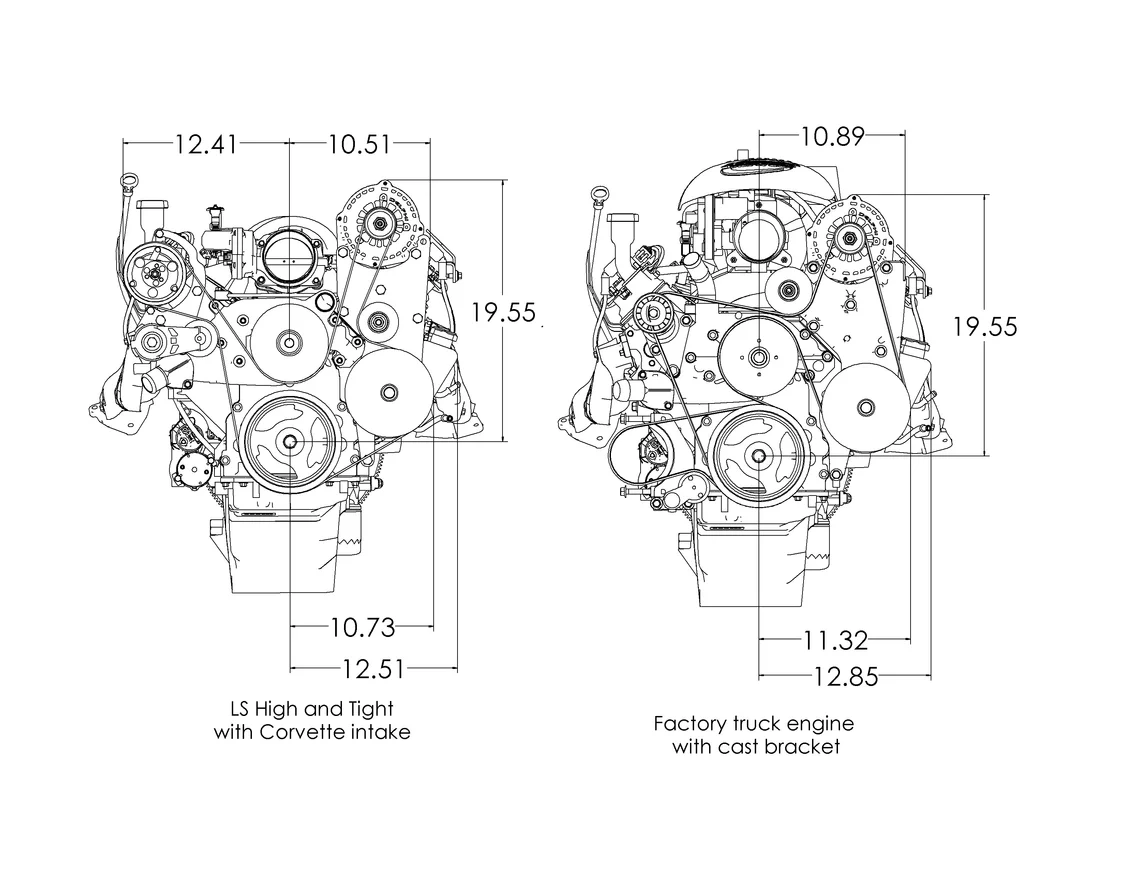

The K10700 High and Tight AC bracket gives you the space you need to clear air ride slosh tubs and your turbo hot side. This space savings makes it a great candidate for early trucks (pre-1955), Jeeps, and classic street rods (pre-1948).

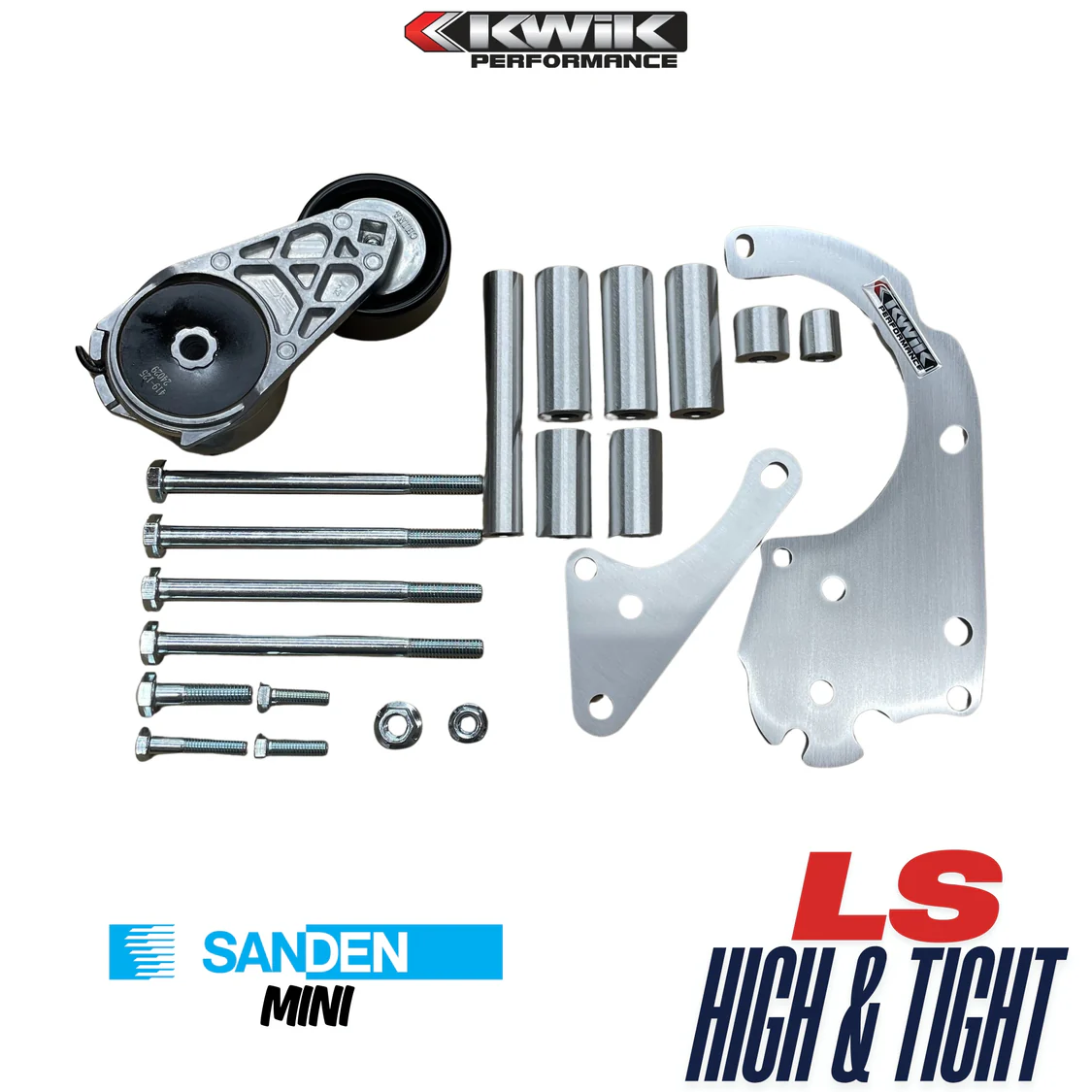

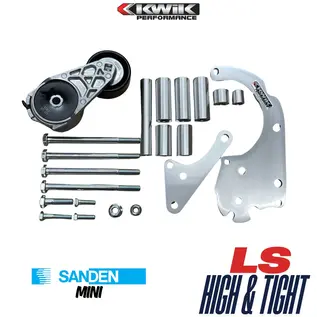

What's included:

• Bracket made of 6061-T6 aircraft grade aluminum (brushed satin finish)
• All necessary spacers and zinc coated fasteners
• Automatic spring-style belt tensioner

What else is required to complete the installation:

• GM LS Gen 3 or 4 engine with Truck/SUV (1999-2013) or Camaro (2010-15) harmonic balancer and water pump
• Six-rib belt, See our included installation instructions for suggested lengths and Gates part numbers. Alternator rating and PS pulley diameters can change suggested lengths. Always check tensioner marks for correct fitment.
• Sanden SD7B10 “mini” AC compressor (Kwik Performance PN 10266-01).
• This AC compressor also requires a
  manifold style fitting kit. We offer both a straight and a curved manifold.

LS High and Tight Installation Video

LS High and Tight AC Installation Instructions

Gates Belt Chart (Part number and length)
