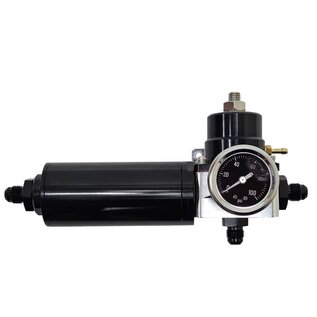

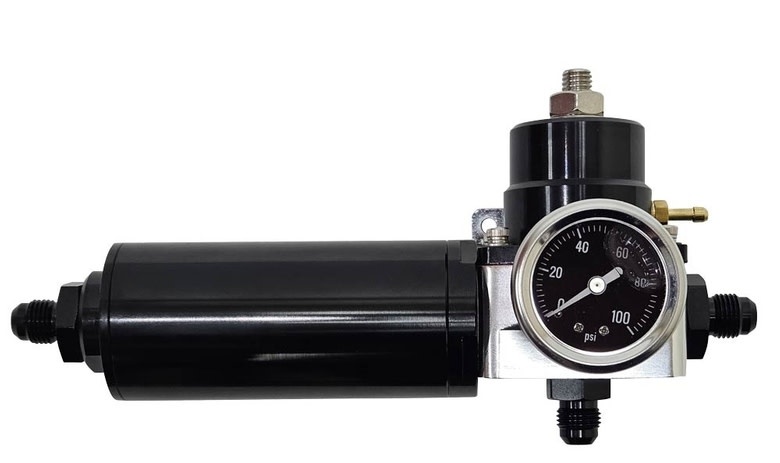

Genuine Tanks Inc Adjustable Fuel Pressure Regulator with Filter - AFPR1-F-KIT
- Regulator Fuel Filter Combo
- Adjustable Bypass Regulator for EFI Applications
- Billet Aluminum
- Adjustable Pressure from 35-70 PSI
- Compatible with Pumps up to 450 LPH
- Regulator has -10 ORB Inlet / Outlet Fittings with a -6 ORB Return
- Filter Has a -10 ORB Female Inlet with a -10 ORB Male Outlet to connect directly to the Regulator
- -6AN Male to ORB Fittings Included.
- 1/8" NPT Gauge Port and FUel Pressure Gauge Included
- Fuel Pressure Rises on a 1:1 Ratio when Referencing Boost
- 2" Diameter by 5-7/8" Long Filter Included
- 10 Micron Stainless Steel Washable Element
- Installation Wrench Included
- Regulator Must Be Mounted Before the Fuel Rails When Connected to Filter
