Genuine Kwik Performance AC/Alt/PS Brackets for L83/L86 Truck - 508/709 Compressor - Include Type II Pump - K10702
Read more...
Genuine Kwik Performance AC/Alt/PS Brackets for L83/L86 Truck (14-19)- 508/709 Compressor - Include Type II Pump - K10702

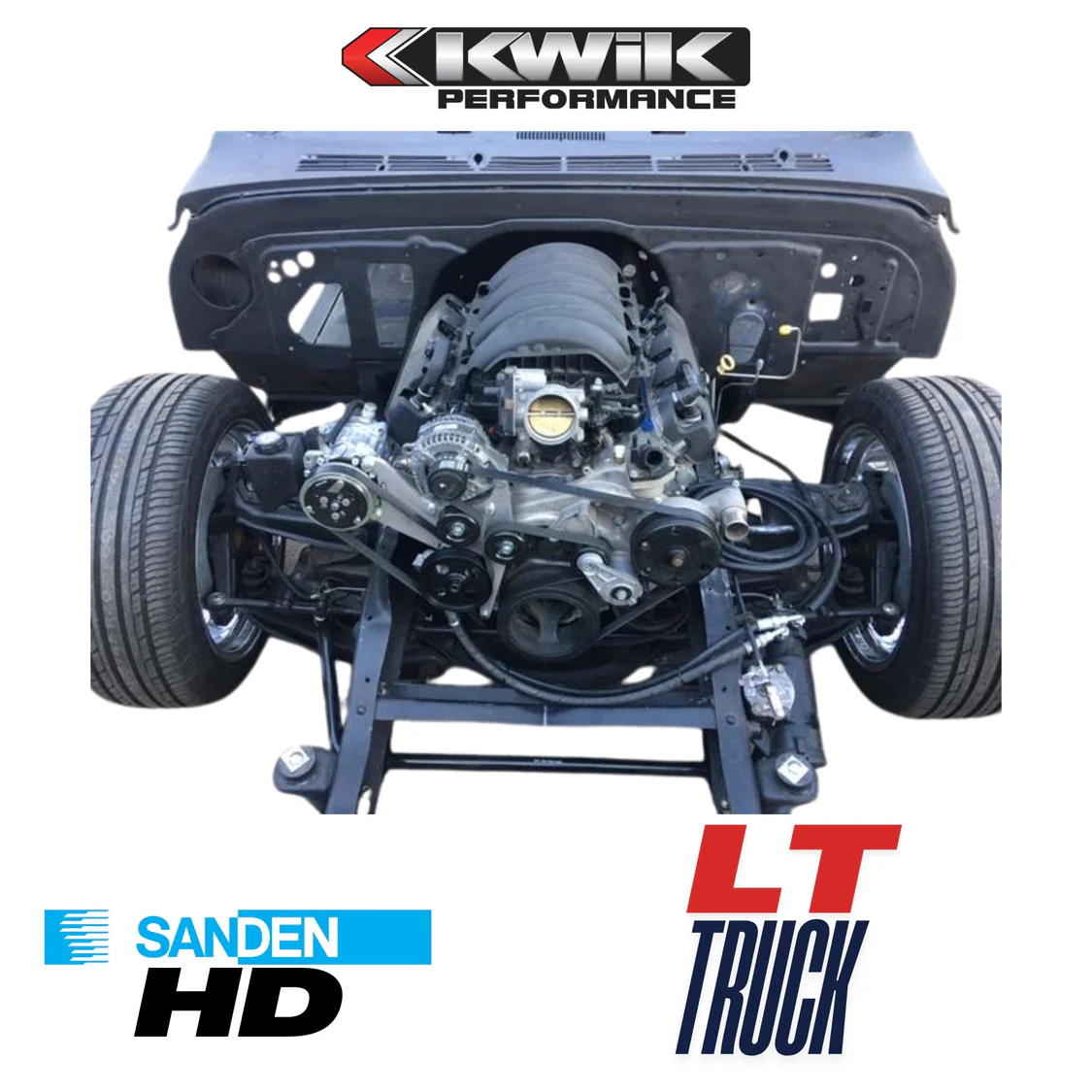

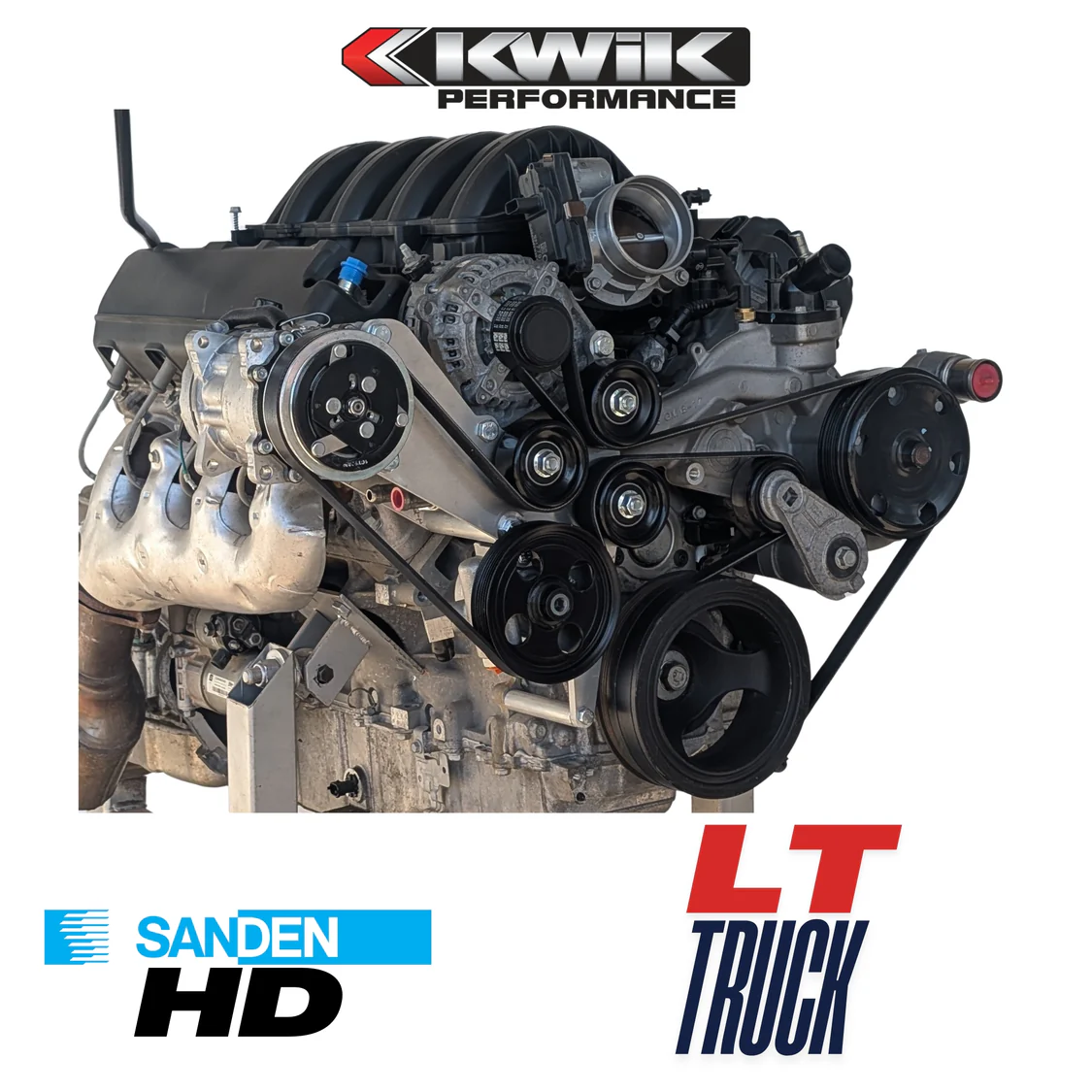

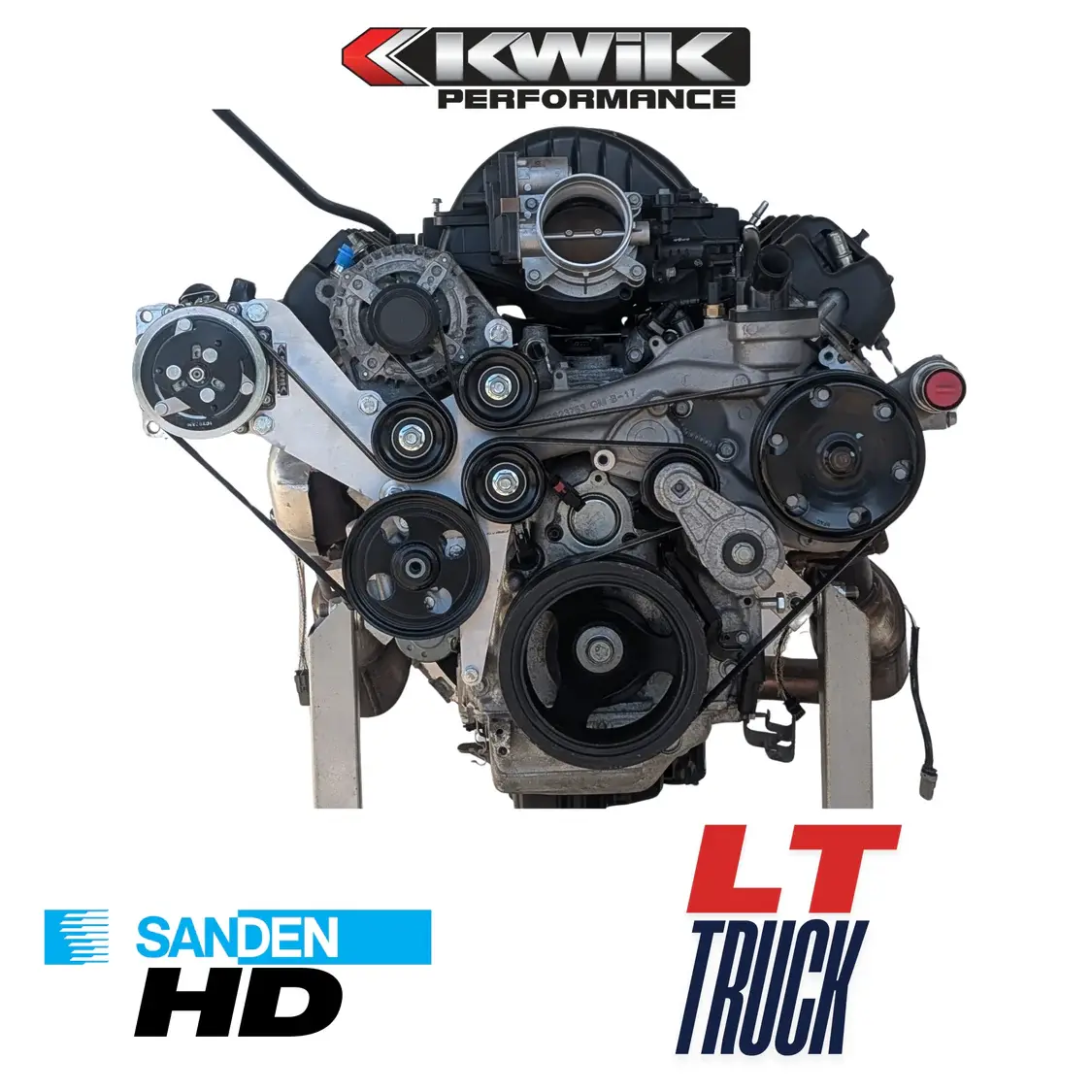

Here’s how to add a power steering pump and Sanden AC compressor to your 2014-2019 LT truck engine.
Here’s the problem this bracket kit solves: The L83 and L86 engine donor trucks used electric power steering assist and also used a variable displacement AC compressor. Your project vehicle probably has hydraulic power steering and maybe an aftermarket AC system. This bracket kit gives you a Type 2 power steering pump and a place to add a Sanden AC compressor

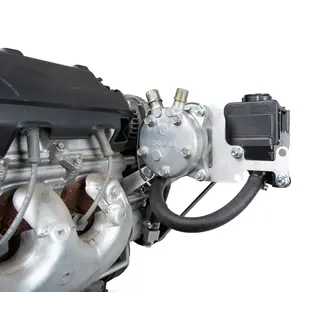

What you might find unusual is mounting the power steering pump on the passenger’s side of the engine. We do that because these engines have an offset water pump taking up space on the driver’s side. There is a potential location low on the driver’s side where GM put a vacuum pump. We know hotrodders may remove that pump but we figured GM put there for a reason and we didn’t want to force builders to remove it.
The solution to a power steering pump on the passenger’s side is simply longer PS hoses and we offer a custom kit that will work great with C10 and C1500 OBS (1988-98) trucks and has been used on front steer GM cars as well.
What's included:
Bracket made of 6061-T6 aircraft grade aluminum (brushed satin finish)
All necessary spacers and zinc coated fasteners
Power Steering Pump
Idler Pulleys
What else is required to complete the installation:
LT Truck (14-19) AC-Alt/PS Instructions
Gates Belt Chart (Part number and length)
