Vintage Air - 1986-87 Grand National & 82-88 Buick Regal with AC Gen5 SureFit™ Evaporator Kit - 564451

Genuine Vintage Air 1986-87 Grand National & 82-88 Buick Regal with AC Gen5 SureFit™ Evaporator Kit - 564451

Vintage Air' 5th generation SureFit climate control systems are the most powerful and technologically advanced systems available today. They employ an exclusive, fully electronic microprocessor-controlled system that eliminates cables or vacuum connections. Separate, state-of-the-art, high-density aluminum heat exchangers pack the maximum possible performance and reliability within the confines of your dash.

Additional features include variable blower speed and dash/floor/defrost blend.

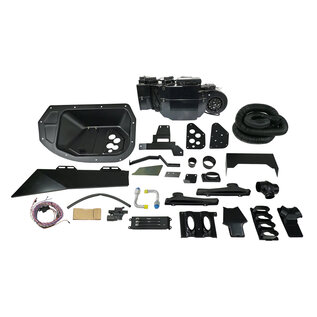

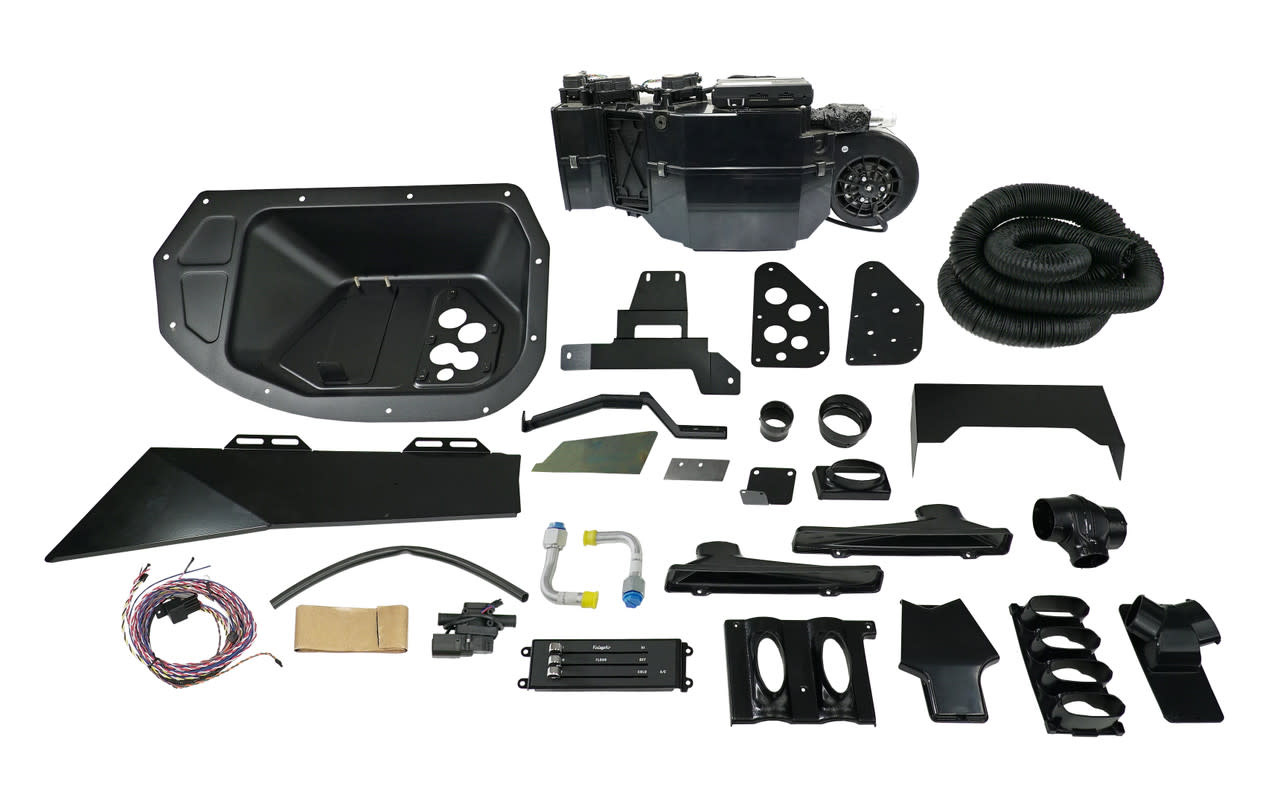

**Evaporator kit includes the evaporator unit and mounting brackets, louvers (where required), duct hose, wiring harness, new control panel, hardware and installation instructions.

This Evaporator kit can be utilized for all Regal trims. The new electronic control panel is included in the evaporator kit and will fit all Regal trims as well.

• There are two options for the Condenser Kit (Turbo and Non-Turbo). If your compressor is mounted on the driver’s side of the vehicle, use the Turbo Condenser kit. If the compressor is located on the Passenger’s side of the vehicle, use the Non-Turbo Condenser kit option.
• There are two Hose kit options, the Standard hose kit and the Modified hose kit. The Standard hose kit will only fit 1986-87 Grand National and T-type. The hose lengths and fittings are specific for these years and trim. For other trims, use the Modified hose kit, which will allow the A/C hoses to be cut to length and fittings to be clocked to your needs.

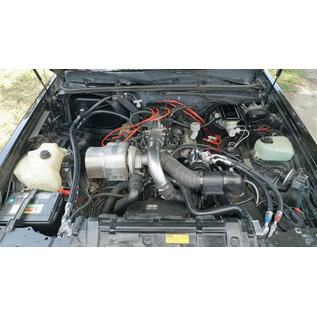

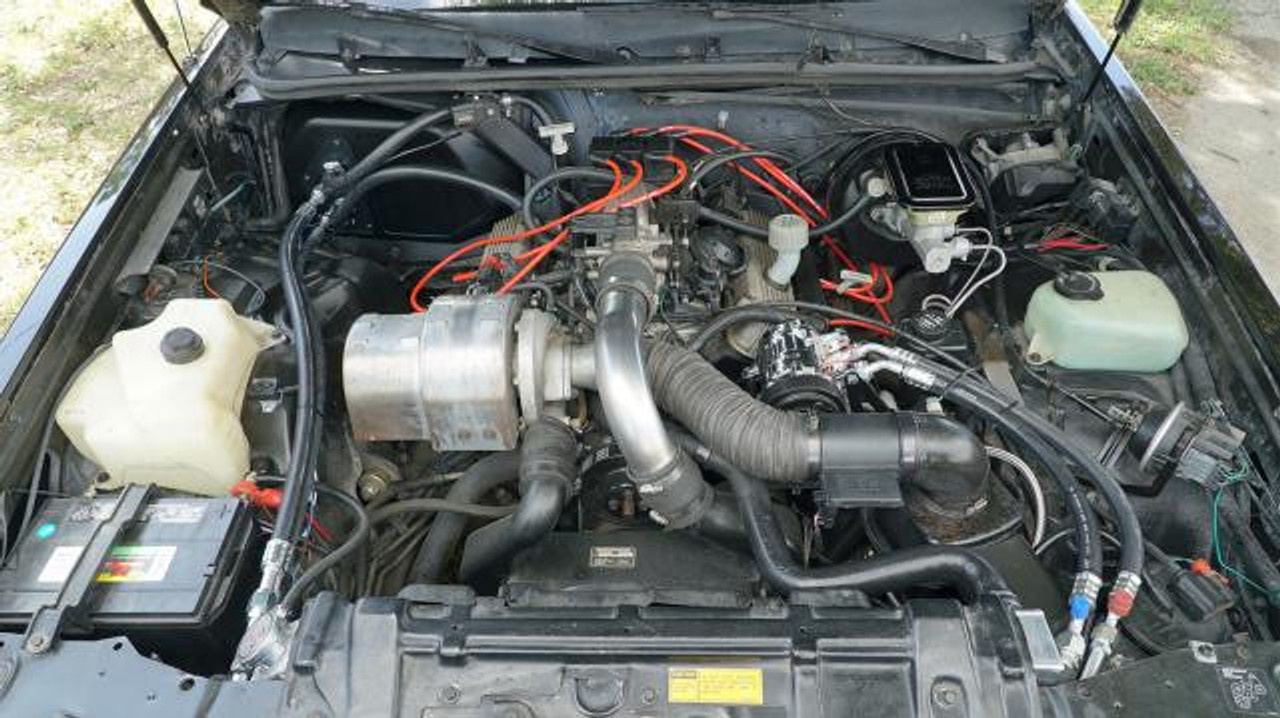

• At this time there is only one compressor bracket kit available for the Buick Regal which is designed to only fit the 1986-87 Grand National and T-type. This bracket kit was designed using a 7B10 compressor. This compact compressor was used due to the tight clearance in the engine bay.

• Engineered to cool your vehicle faster than ever
• Improved diagnostics and advanced systematic fail safes
• Multiple mounting options for an easier installation
• Rubber well-nut mounting points for improved NVH isolation
• Separate high-capacity A/C and heater coils with blend air door for rapid vent temperature adjustment
• OEM block-type expansion valve
• Injection molded case for optimal precision, strength and quality
• Injection molded blend air doors with integral rubber seals
• Removable access covers for coil service
• Interchangeable defrost and floor heat plenums for increased mounting flexibility
• Powder coated steel mounting brackets

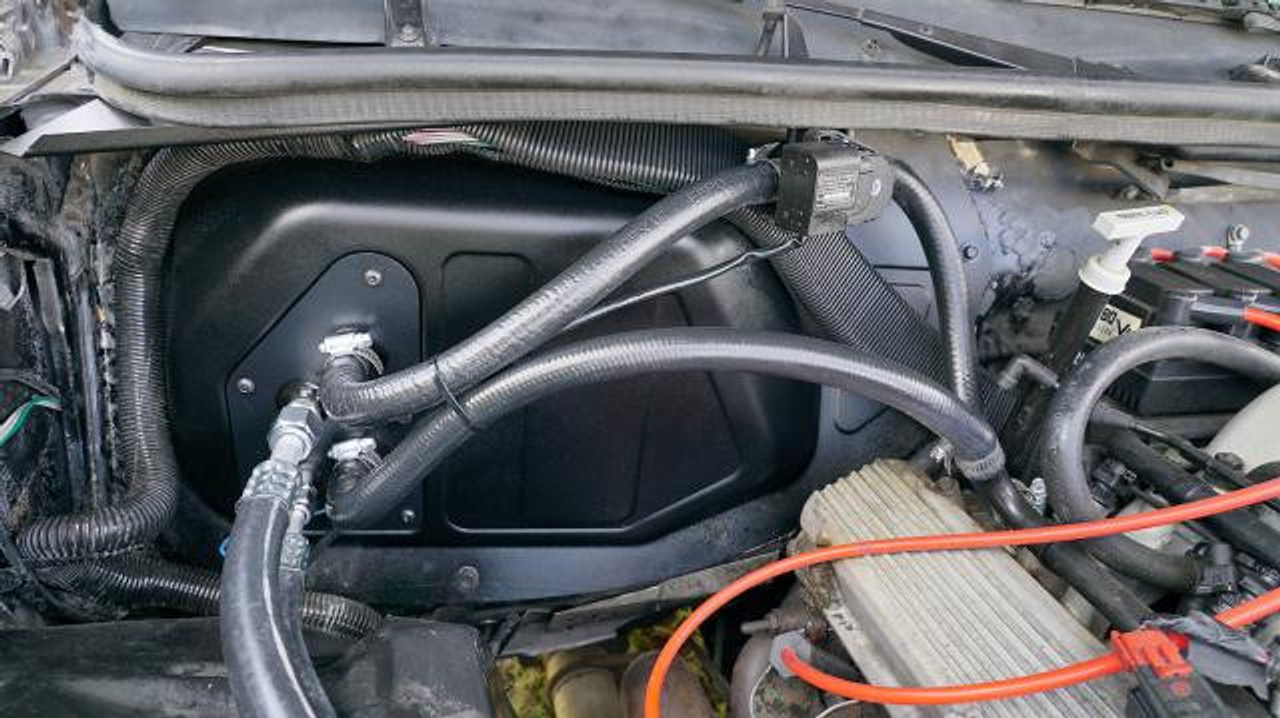

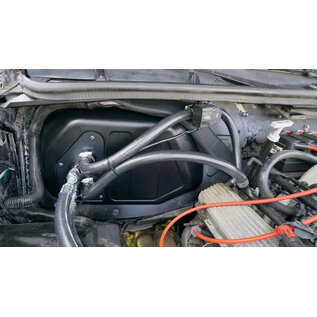

• Stamped steel firewall cover panel
• Steel firewall water drip tray

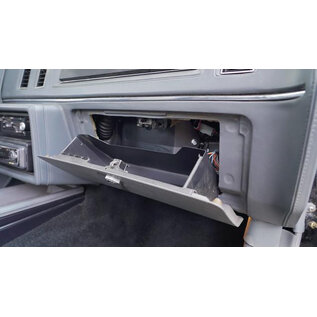

• Replacement steel glove box (reduced capacity)

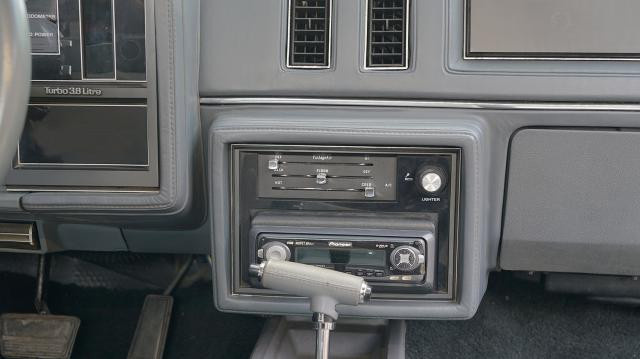

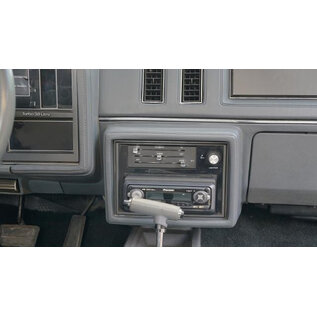

• Includes new bolt-in, LED backlit control panel

Notes

1. Some installations may require additional engine pulleys not included with kits. You must provide pulleys, V-belts, heater hoses and refrigerant.
2. SureFit™ systems may interfere with some OEM radios or in-dash speakers.
3. Vintage Air recommends using our heavy-duty fan blade and a fan shroud.

Regulatory:  WARNING: California proposition 65

Instructions:  Installation Instructions
