55-56 Chevy Complete Gen5 SureFit Kit - Deluxe Controls - 4-Vent - 961555

Information

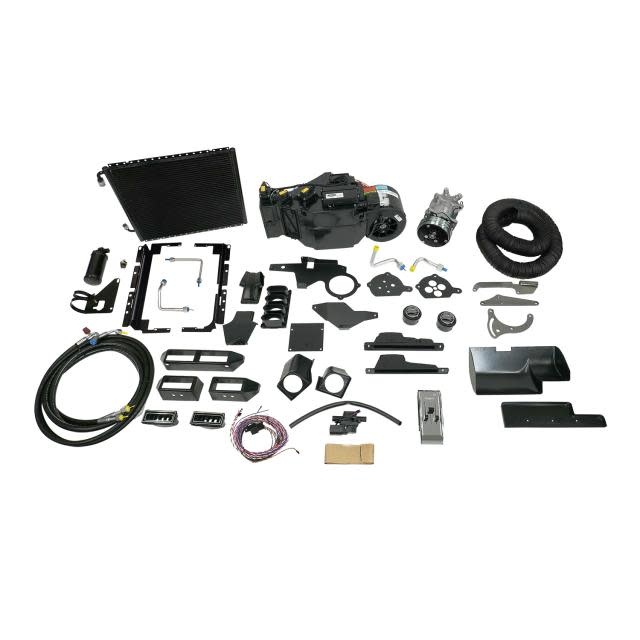

Genuine Vintage Air 55-56 Chevy Complete Gen5 SureFit Kit - Deluxe Controls - 4-Vent - 961555

The Gen 5 is Vintage Air's most powerful and intelligent climate control system. The Gen 5 uses an exclusive fully electronic microprocessor control system that eliminates cables or vacuum connections. Separate high-capacity copper parallel-flow heat coil and aluminum plate-and fin-cooling coils provide outstanding performance and instant temperature adjustments.

Additional features include variable blower speed and dash/floor/defrost blend.

**Complete kits include everything in the evaporator kit, plus all under-hood components such as compressor, engine brackets, condenser with brackets, preformed refrigerant lines, drier, fittings, hardware and installation instructions.

Engineered to cool your vehicle faster than ever
Improved diagnostics and advanced systematic fail safes
Multiple mounting options for an easier installation
Rubber well-nut mounting points for improved NVH isolation
Separate high-capacity A/C and heater coils with blend air door for rapid vent temperature adjustment
OEM block-type expansion valve
Injection molded case for optimal precision, strength and quality
Injection molded blend air doors with integral rubber seals
Removable access covers for coil service
Interchangeable defrost and floor heat plenums for increased mounting flexibility
Powder coated steel mounting brackets
Quiet high-performance blower
Includes bolt-in replacement control

NOTES:
1. This kit is designed for the original firewall and dash.
2. If using a cross flow radiator, see Condenser Kit # 03455-VCC.
3. Some installations may require additional engine pulleys not included with kits. You must provide pulleys, V-belts, heater hoses and refrigerant.
4. When retaining the original 265 or 283 V8 engine, it may be necessary to upgrade the harmonic balancer and pulleys. You will also need to upgrade from the generator to an alternator.
5. SureFit™ systems may interfere with some OEM radios or in-dash speakers.
6. With no molded center vent, this kit allows the use of 4 individual louver locations.

Regulatory: WARNING: California proposition 65

Instructions: Installation Instructions
