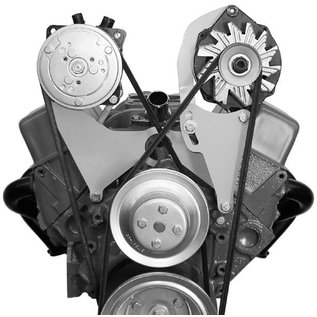

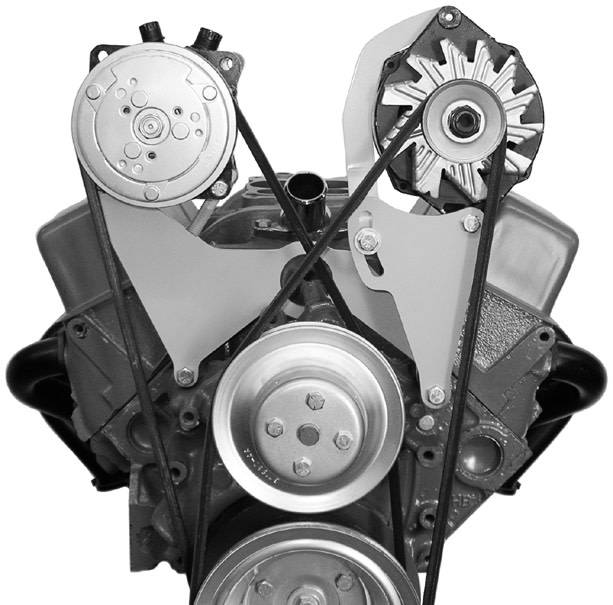

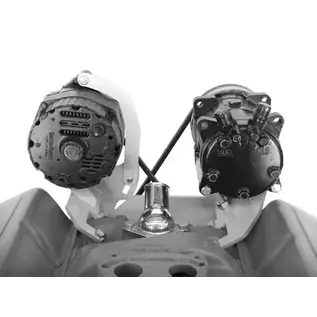

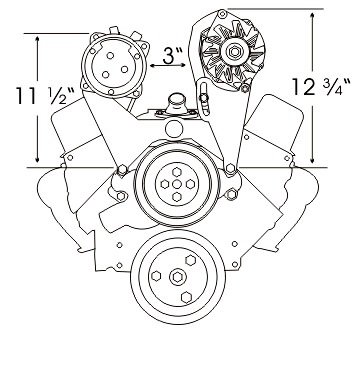

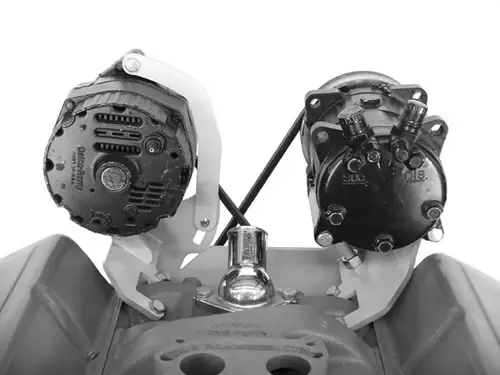

TIG welded bare steel A/C compressor bracket that mounts Sanden 508 or 709 compressor high and inboard on passenger side of small block Chevrolet engine. Fits long water pump only.
Read more...
| Quantity In Stock: | 2 |
With the increasing use of long water pumps on modified vehicles these are very popular. Bolt to the top water pump and the two front intake bolts. May be used individually or in conjunction with 201L Alternator Bracket. Will clear tall valve covers. NO DRILLING OR TAPPING REQUIRED. A hole is provided in the A.C. bracket for a heater hose. Will Not Work With Vortec Heads
Water Pump Identification/Technical Information
Compressor Identification/Technical Information
Belt Routing Technical Information
Cylinder Head Technical Information
