Alan Grove Components - Compressor Bracket - Big Block Chevy - Low Mount -Short Water Pump - Passenger Side - 108R

TIG welded bare steel A/C compressor bracket that mounts Sanden 508 or 709 compressor low on passenger side of big block Chevrolet engine. Fits short water pump only. Measure clearance before ordering.

$95.00 Excl. tax
Delivery time: Typically Ships In 1 Business Day
Article number: 15136-VCB
Quantity: 1

108R Compressor Bracket

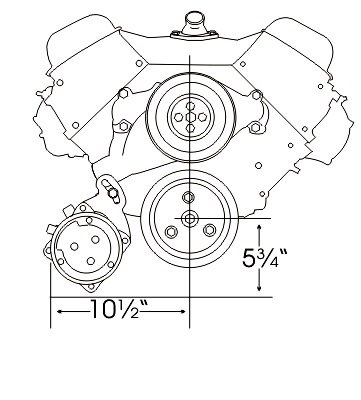

Tight-fit design fits narrow frames. Compressor bolts to fuel pump mounting flange for strength. Short water pump only.  May be driven off crank and fan pulleys OR crank pulley ONLY. REQUIRES USE OF A REMOTE FUEL PUMP. Check our dimension requirements before ordering.

Installation Instructions

Water Pump Identification/Technical Information

Compressor Identification/Technical Information

Pulley Technical Information

Belt Routing Technical Information

Note: on 66/67 Chevelle applications, the sway bar will need to be lowered and a mounting tab on the Sanden 508 compressor will have to be removed to fit. Also the lower radiator hose will have to be changed to a flexible hose to clear the compressor.
