Alan Grove Components - Compressor & Alternator Bracket - Late Narrow-Belt Flathead - 314

Late Narrow Belt This bracket is designed for the Ford/Merc. 1950-53 car motors running the narrow 3/8" belt. Bracket mounts the Sanden A.C. compressor and GM standard case alternator off of the original generator mounting flange. Set-up may be used wit

Read more...
$255.00 Excl. tax
Delivery time: Typically ships within 2-3 business days

314 Compressor & Alternator Bracket

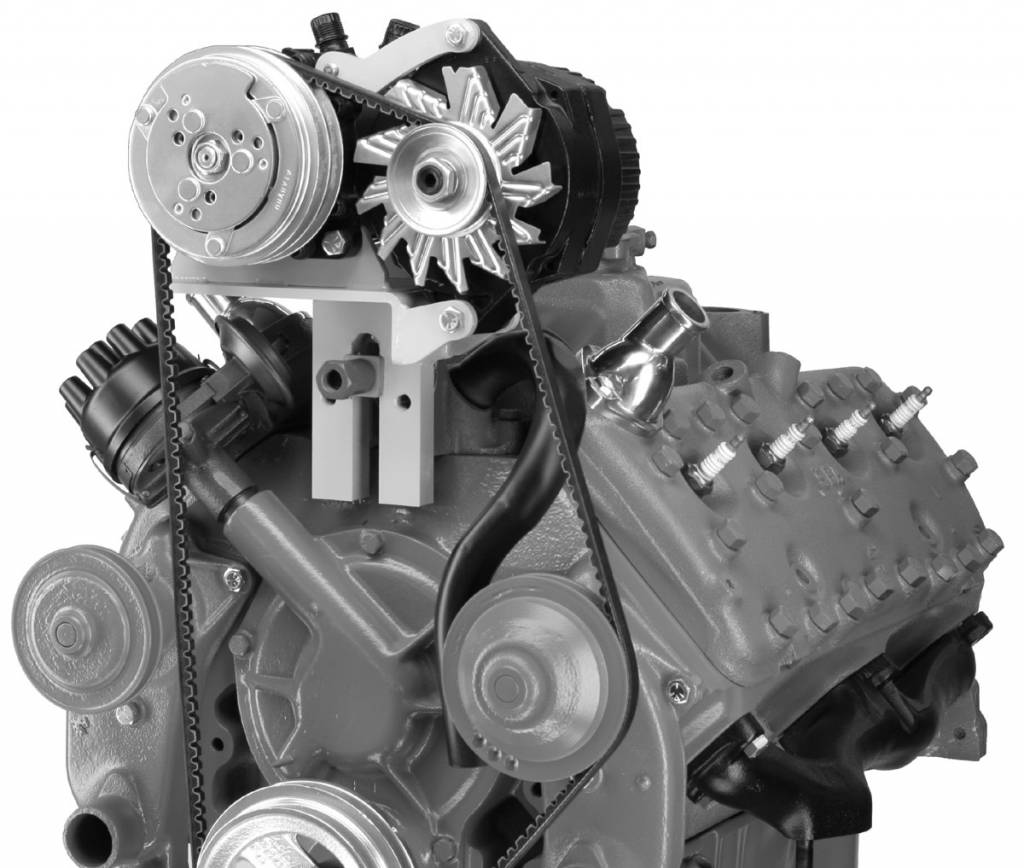

Late Narrow Belt This bracket is designed for the Ford/Merc. 1950-53 car motors running the narrow 3/8" belt. Bracket mounts the Sanden A.C. compressor and GM standard case alternator off of the original generator mounting flange. Set-up may be used with all "regular" dual intakes, four barrel and stock intakes (may not fit triple carb). Set-up will require off-set water necks to provide radiator host. Will retain stock fan assembly

Installation Instructions

Compressor Identification/Technical Information

Alternator Identification/Technical Information
