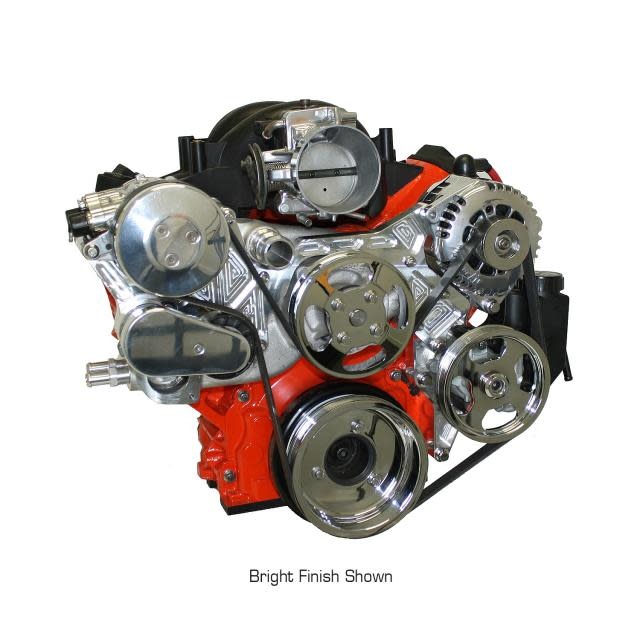

Vintage Air - Vintage Air Chevy LS Low Profile Front Runner Drive System - A/C, Alternator & Power Steering

Vintage Air Front Runner™ drive systems are engineered for maximum Performance First. These are not merely appearance or dress-up components. They are the essence of form following function.

In response to requests for an extra-clearance LS Front Runner™ system we have developed a low-profile kit that includes a redesigned main truss-type bracket which provides additional space for aftermarket intake systems and larger throttle bodies. The system also includes an Edelbrock water pump with a replaceable cartridge along with NPT tapped heater hose inlets for increased chassis and suspension clearance flexibility.

Designed for GM LS applications with power steering the kit features a Detroit Speed aluminum power steering pump, CNC machined brackets, Sanden SD7B10 compressor, 170 Amp Mechman alternator, CNC machined pulleys, compressor clutch cover and tensioner cover.

In addition to detailed installation instructions all of the components listed below are included.

• Low-profile main truss mounting bracket
• ATI harmonic balancer
• Power steering bracket

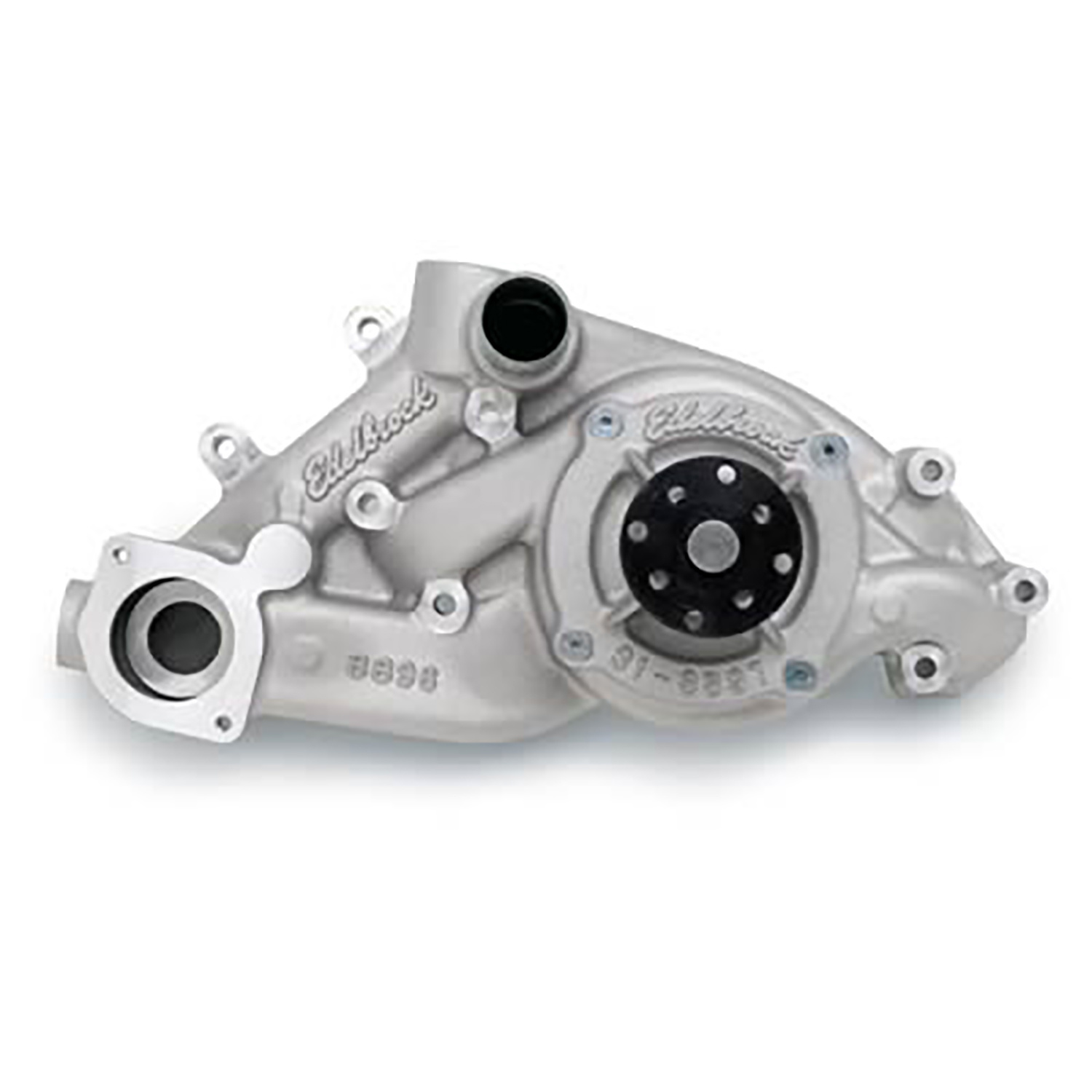

• Edelbrock water pump with replaceable cartridge
• ARP polished stainless hardware
• Sanden SD-7B10 compressor with O-ring adapter blocks
• 170-amp single-wire hairpin internal-fan alternator
• Compressor clutch cover
• Tensioner cover kit
• Crankshaft pulley
• Water pump pulley
• Power steering pulley
• Dayco Performance serpentine drive belt
• Dayco OEM tensioner
• Detroit Speed aluminum power steering pump with integral reservoir

NOTE:
This Front Runner™ drive system is designed for OEM timing covers only. The system will not work with aftermarket timing covers.

Installation Instructions

174029 174030 174027 174028
