Cooling Components - Style 30 Slim-line 2 speed Fan Tall Shroud -CC-1730

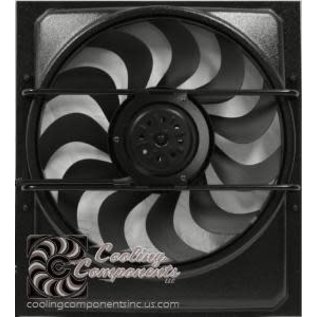

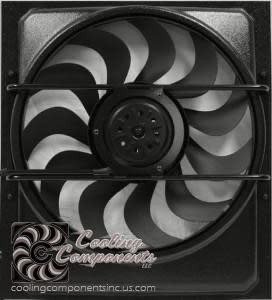

Cooling Components CCI-1730 Cooling Fan

Heavy duty vacuum formed ABS Plastic shroud with TIG welded steel fan motor support frame. The shroud improves fan efficiency by utilizing the entire radiator core area rather than just the circular foot print of a typical non-shrouded electric fan. Must be used as a puller only. Mounts on engine-side of radiator.  On CCI 1730, the fan is moved to the very top of the shroud (where water is the hottest) and the fan is tipped forward at the bottom to increase clearance at water pump.

18 1/2" wide x 20 1/4 " tall

Can be trimmed to : 15 1/2″ wide x 19" tall

Thickness at thickest point: 2 5/8″ (1 9/16" where most water pumps sit)

2600 CFM

Application Chart
