Carbureted Fuel Line Kit w/Bypass Regulator - CARB-LINE-KIT

Universal Fuel Line Kit with Low Pressure Bypass Regulator

This fuel line kit includes 25 feet of hose and most of the fittings that you need to connect a Tanks Inc. fuel pump to a carbureted engine (-6AN male carb adapter fitting is required at the carburetor).  This kit is not recommended for pumps that flow over 255 lph.  This is a return style fuel kit.  Regulator is adjustable in pressure from 5-10 PSI.

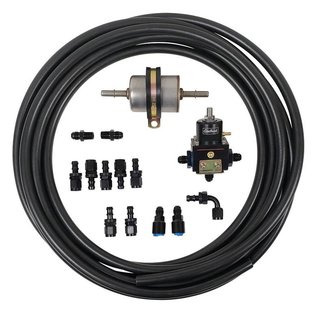

Parts included in this kit:

• # FF-10  Fuel Filter
• # 640853 (x2)  Quick Disconnect Fittings for Fuel Filter
• # 660443 (x2)  1/4" NPT to -6AN Fuel Pump Adapter Fittings
• # 624013 (x7)  Russell Straight -6AN Straight Twist-Lok Fittings
• # 624163  Russell 90 Degree -6AN Twist-Lok Fitting
• # 634173 (25 feet)  Russell -6AN Black Twist-Lok Fuel Hose
• # 174053  Edelbrock Carbureted Bypass Fuel Regulator
• # R670840  6 O-Ring Boss to -6AN Adapter (Regulator Return Fitting)
• # R670650 (x2) 10 O-Ring Boss to -6AN Adapter (Regulator Inlet/Outlet Fittings)

**Please note: the CARB-LINE-KIT will work with all tanks except the following:

UT-N Series, 48G, , 48-CG, 51-CG, 53-CG, 48-CGX, 51-CGX, and 53-CGX

The tanks listed above require the CARB-LINE-KIT45.  This kit has two 45 degree fittings instead of straight.  These tanks have a recessed bowl where the fuel pump is mounted.  The 45 degree fittings point up out of the bowl for easier accessibility.
