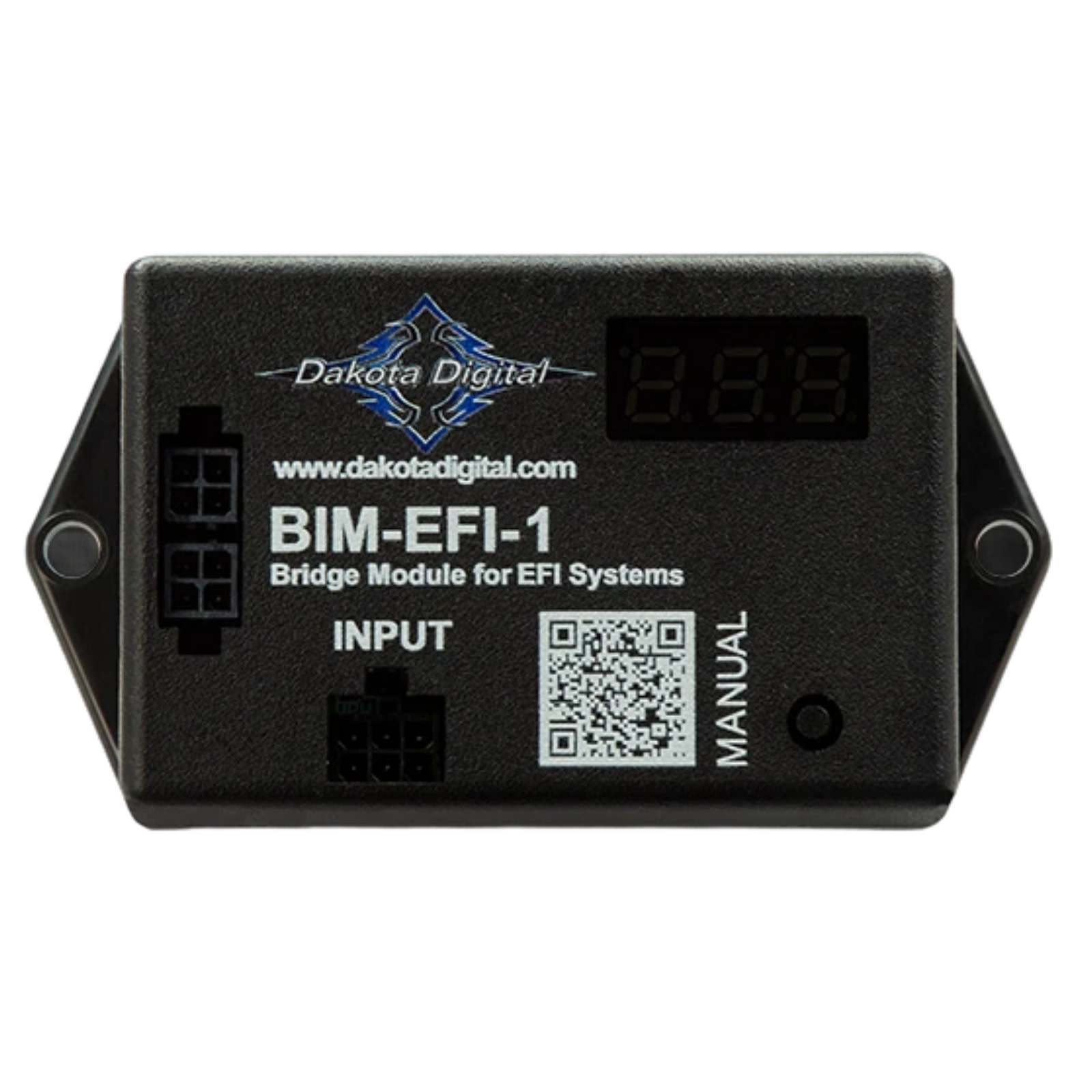

Bridge Module for EFI Systems - Dakota Digital’s popular BIM interface modules for aftermarket fuel injection ECUs have been reengineered into the new BIM-EFI-1.
| Quantity In Stock: | 5 |
Dakota Digital’s popular BIM interface modules for aftermarket fuel injection ECUs have been reengineered into the new BIM-EFI-1. The BIM-EFI-1 and corresponding harness (see below) will decode the information provided by your ECU and streamline the installation of our VFD3, VHX, HDX, RTX or GRFX series of gauges by eliminating the need to duplicate some senders and sensors.
The BIM-EFI-1 will also provide additional information to our gauges depending upon the configuration of your aftermarket ECU.
Now with Bluetooth technology, the BIM-EFI-1 setup and programming is even easier with the use of a smart phone or device. Bluetooth also provides the ability to have over the air software updates to ensure your BIM-EFI-1 is up to date and compatible with your fuel injection manufacturer's current software.
*See below for the corresponding CAN Bus harness that will be REQUIRED in addition to the BIM-EFI-1 module.
**For OEM ECU’s (J1850/CAN) with an OBD II engine diagnostic port, please refer to the BIM-01-2** Click here to view BIM-01-2

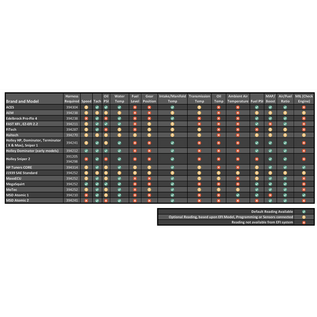

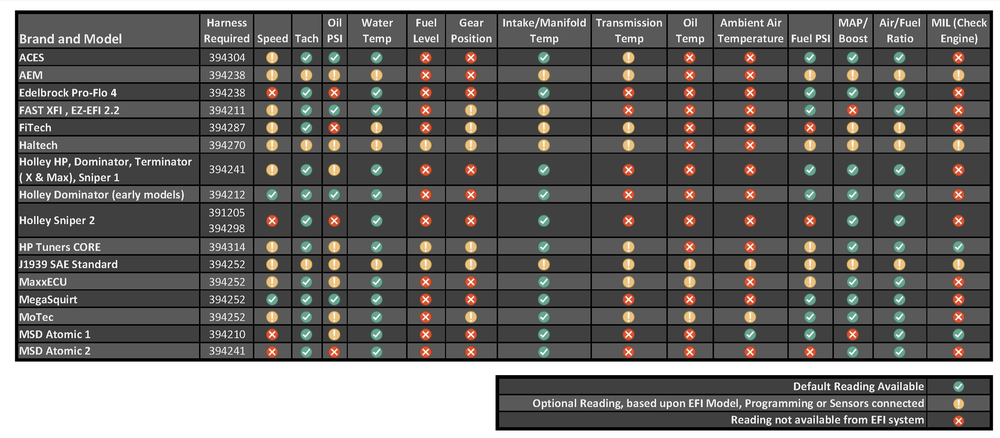

| Harness | EFI Manufacturer |
| 394241 | Holley HP, Dominator, Terminator, Terminator X, Sniper 1, MSD Atomic 2 |
| 391205 + 394298 | Holley Sniper 2 |
| 394211 | FAST XFI and EZ-EFI 2.0 |
| 394210 | MSD Atomic 1 |
| 394238 | AEM and Edelbrock Pro-Flo 4 |
| 394252 | MegaSquirt, MaxxECU, MoTeC, and J1939 (unterminated leads) |
| 394270 | Haltech |
| 394304 | Aces |
| 394287 | FiTech |
| 394314 | HPTuners CORE |
