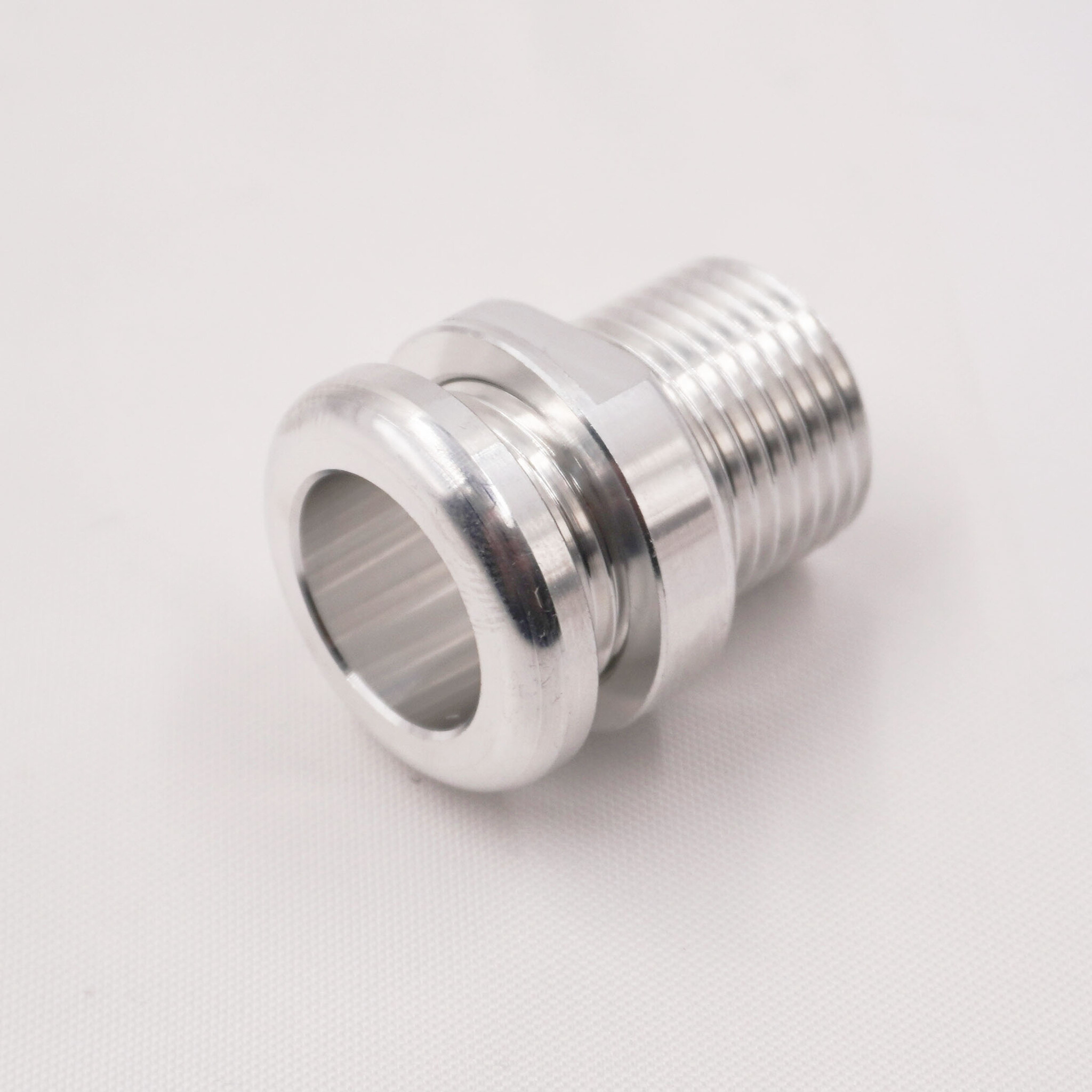

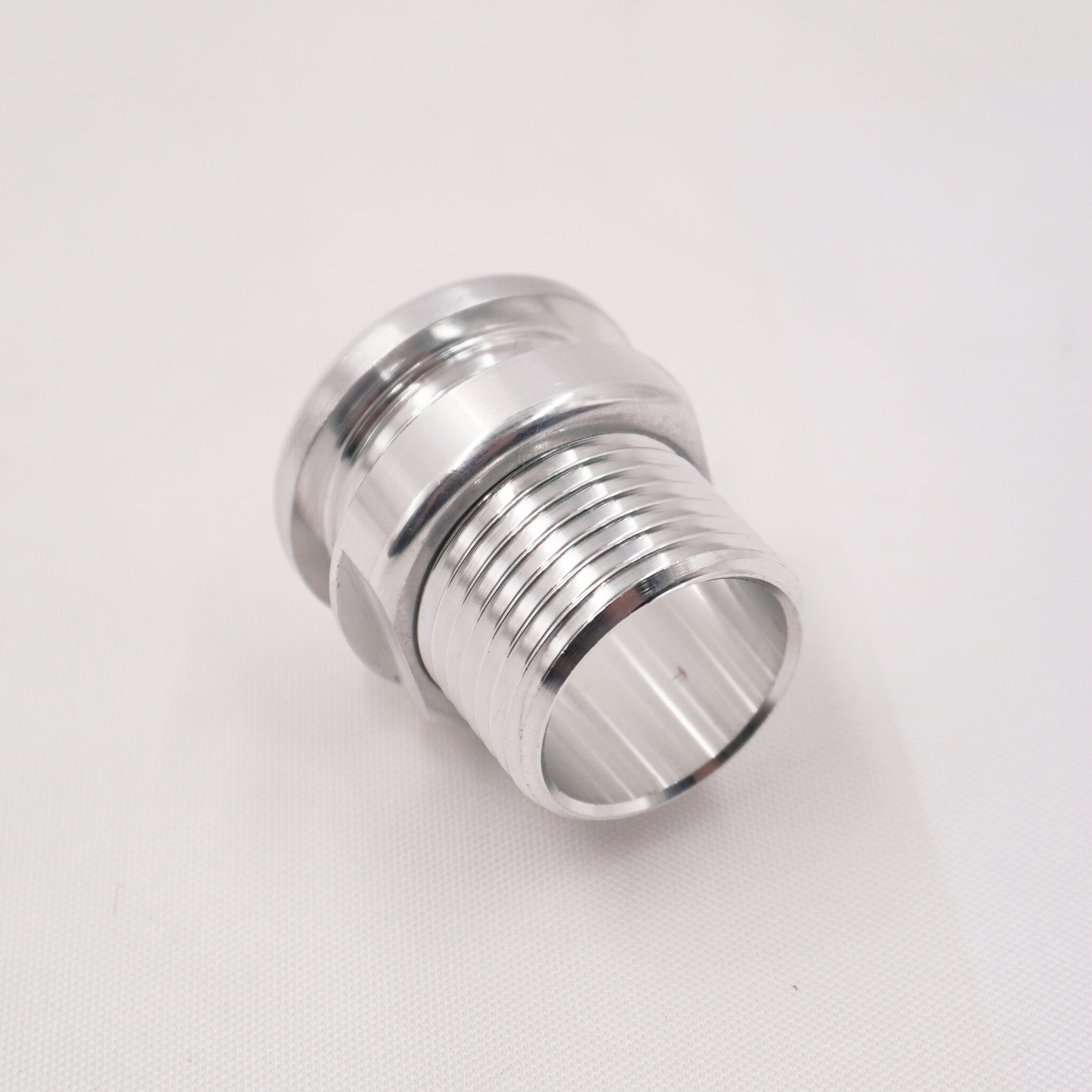

Pure Choice Motorsports - Aluminum Pass Through Grommet with Lock Nut - Machined Aluminum

Made in the USA, the Pure Choice Aluminum Pass Through Grommet is a clean, durable alternative to traditional bulkhead fittings and rubber grommets. Designed to reduce the need for additional fittings and potential leak points, it provides a simple, professional-looking solution for routing A/C hoses through firewalls, inner fenders, and panels.

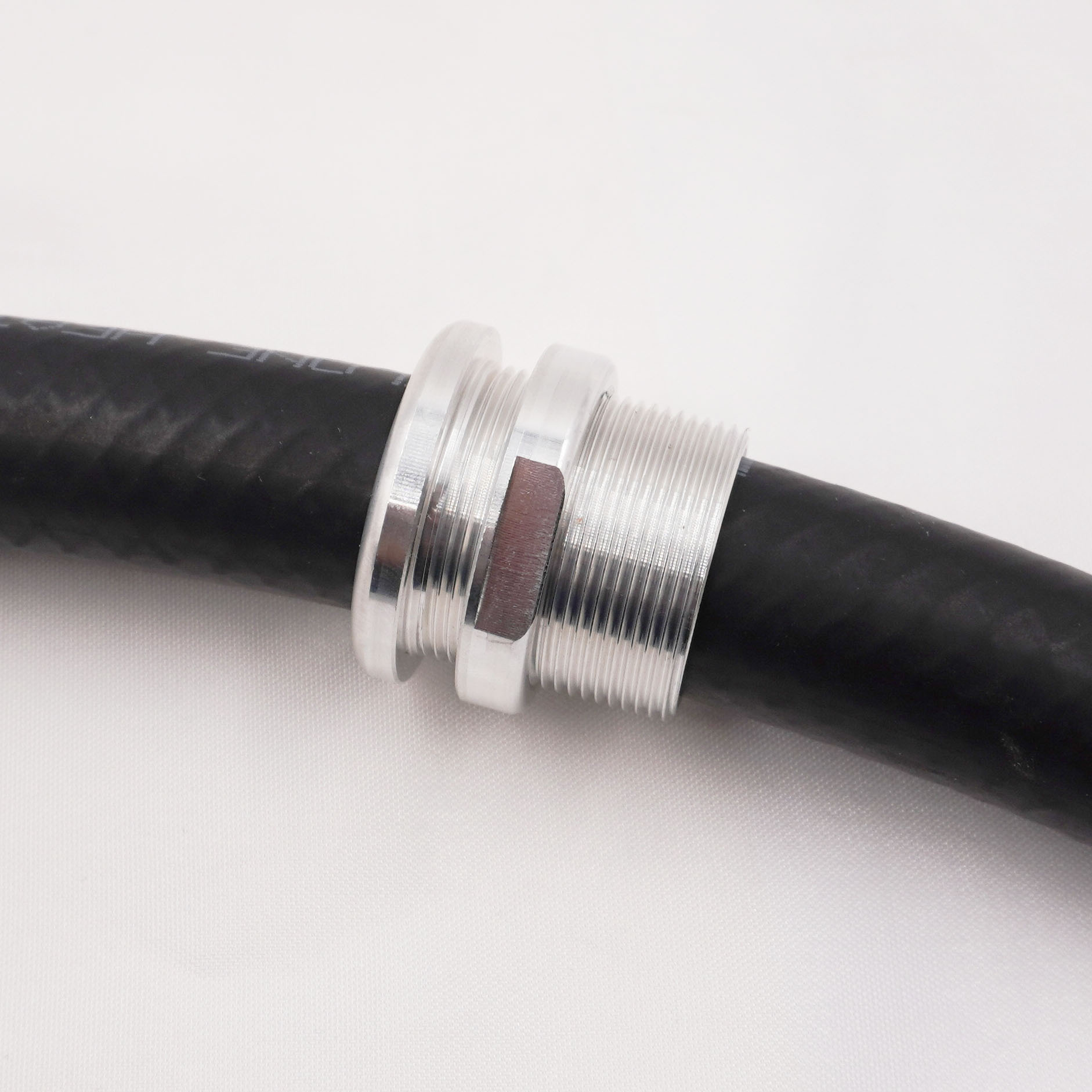

Compatible with E-Z-Clip, Reduced Barrier A/C Hose, and Pure Stealth™ Nylon Braided A/C Hose, this billet aluminum pass through offers the versatility of a grommet with the strength and appearance of a premium machined component. The 5/8" Heater Hose Grommet accepts most brands of 5/8" hose.  (We use Insulone) as well as the Pure Stealth 5/8" Nylon Braided Heater Hose.

Features:

• Made in the USA
• Machined aluminum construction
• Eliminates the need for additional bulkhead fittings
• Clean, low-profile appearance
• Compatible with:
  • E-Z-Clip A/C Hose
  • Reduced Barrier A/C Hose
  • Pure Stealth™ Nylon Braided A/C Hose
• Fits materials up to 3/4" thick

• #6 - 15125
• #8 - 15135
• #10 - 15145
• 5/8" Heater Hose - 15155

Specifications:

Inside Diameter (I.D.):

• # 6 - Approx. 0.620"
• #8 - Approx. 0.715"
• #10 - Approx. .800"
• 5/8" Heater Hose - .945"

Outside Diameter (Bezel):

• #6 - Approx. 1.000"
• #8 - Approx. 1.100"
• #10 - Approx. 1.200"
• 5/8" Heater Hose - 1.365"

Required Mounting Hole:

• #6 - 0.750"
• #8 - 0.875"
• #10 - 1.000"
• 5/8" Heater Hose - 1.125"

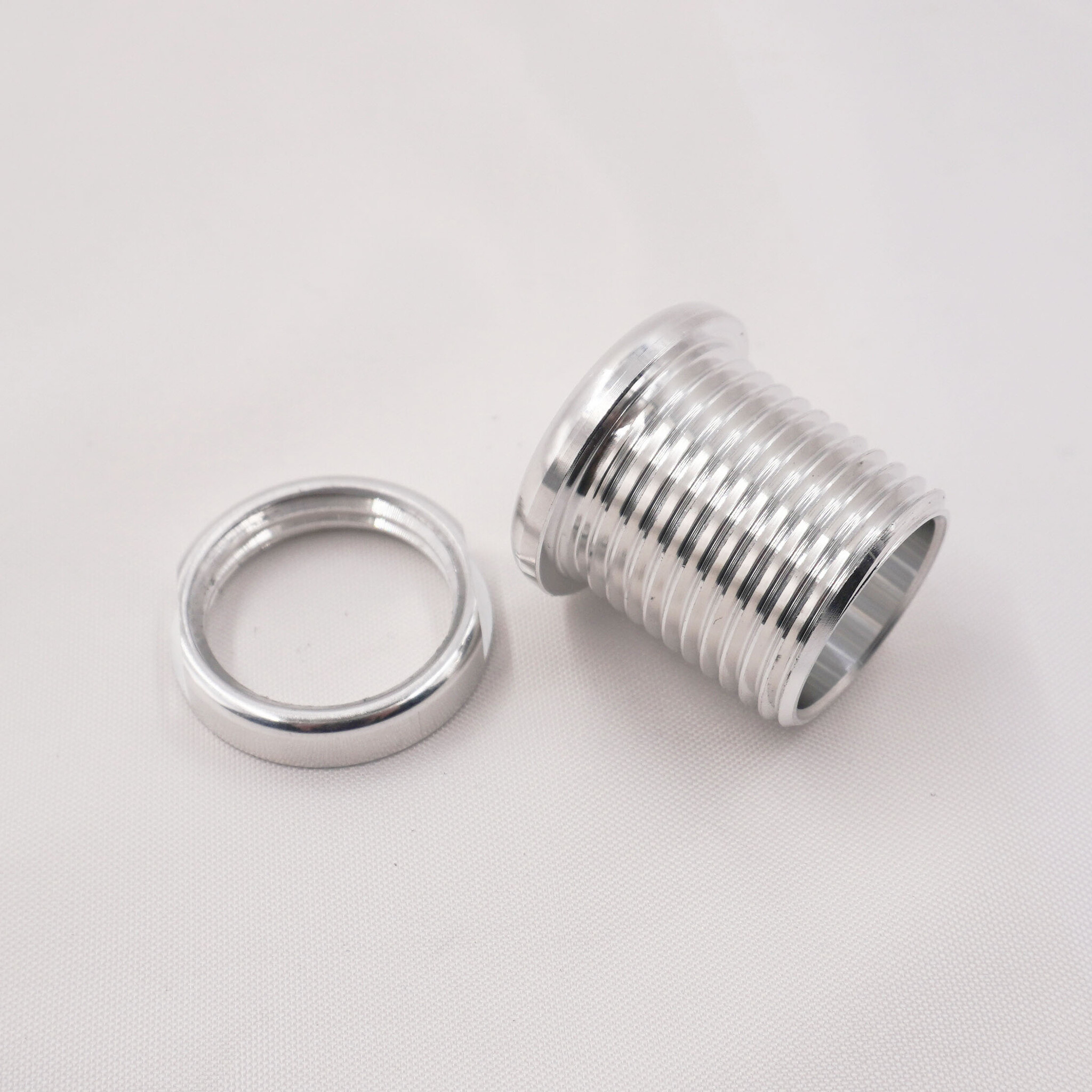

Includes:

• Threaded aluminum pass through grommet
• Aluminum lock nut

Sold individually.
