Alan Grove Components - Alternator Bracket - SBC VORTEC - Long Water Pump - Driver Side - 230L-Tall

TIG welded bare steel alternator bracket that mounts: GM 10si, 12si or CS130 alternators that have 6:00 & 12:00 mounting ears, high and inboard on driver side of small block Chevrolet engine. Spaced to clear multi carbs etc. Works with Vortec heads. Fi

Read more...
$120.00 Excl. tax
Delivery time: Typically ships within 2-3 business days

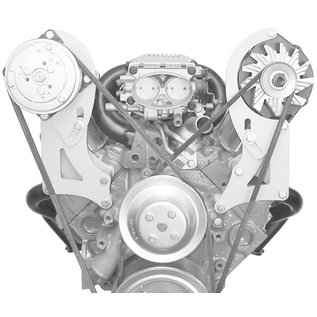

230L-Tall Alternator Bracket

A very versatile street rod style bracket system. Works well with most induction systems. Will clear multiple carbs, fuel injection, etc. Bolts to the head and top water pump bolt holes. The alternator bracket will fit all 1969 and newer heads and mounts: GM 10si, 12si or CS130 alternators that have 6:00 & 12:00 mounting ears. The A.C. Compressor bracket fits all G.M aluminum heads including the fast-burn aluminum heads and may be used on 1969 thru 1986 cast iron heads by drilling and tapping one hole for the upper mounting point. Will clear up to 3 in. tall center bolt valve covers when used on 1987 and later heads. Will clear up to 4 in. tall valve covers when used on 1986 and earlier heads.Use as a stand alone alternator bracket or in conjunction with 130R or 131R A/C Compressor Bracket. Will not work with factory power steering pump bracket. Use 402 Power Steering Bracket. Long water pump only.
