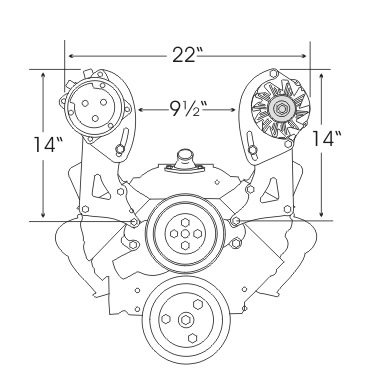

Designed for extra induction system clearance, this TIG welded bare steel alternator bracket mounts: GM 10si, 12si or CS130 alternators that have 6:00 & 12:00 mounting ears, high and inboard on driver side of small block Chevrolet engine.
Read more...
| Article number: | 15802-VCB |
| Quantity In Stock: | 2 |
212L Alternator Bracket
This bracket system is designed to clear valve covers up to 4 1/2 in. tall when used with 1986 or earlier heads. Bolts to the heads and water pump. When the A.C. Compressor bracket is used on heads with one bolt hole, they will require drilling and tapping one hole for the upper mounting point. Use as a stand alone alternator bracket or in conjunction with 112R A/C Compressor Bracket. Fits short water pump only.
Water Pump Identification/Technical Information
Alternator Identification/Technical Information
