Designed for low hood clearance, this TIG welded bare steel alternator bracket mounts: GM 10si, 12si or CS130 alternators that have 6:00 & 12:00 mounting ears, high and out board on driver side of small block Chevrolet engine. Long water pump only.
Read more...
| Article number: | 15156-VCB |
| Quantity In Stock: | 2 |

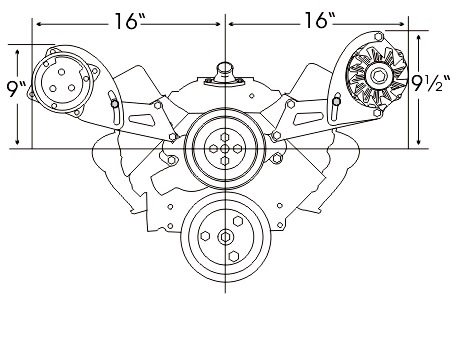

234L Alternator Bracket
Designed for cars with low hood clearance-Vettes, Camaros, etc. These brackets work great on most vehicles with a wide engine compartment -- Trucks, 50 - 60's cars, etc. These brackets bolt to the head and top water pump bolt holes. The alternator bracket will fit all 1969 and newer heads. The A.C. Compressor bracket fits all G.M. aluminum heads including the fast-burn aluminum heads and may be used on 1969 thru 1986 cast iron heads by drilling and tapping one hole for the upper mounting point. Use as a stand alone alternator bracket or in conjunction with 134R or 135R A/C Compressor Bracket. Does not work with OEM power steering pump bracket. Use 402L Power Steering Pump Bracket. Long water pump only.
Water Pump Identification/Technical Information
Alternator Identification/Technical Information
