Designed for extra induction system clearance, this TIG welded bare steel alternator bracket mounts: GM 10si, 12si or CS130 alternators that have 6:00 & 12:00 mounting ears, high and inboard on driver side of small block Chevrolet engine.
Read more...
| Article number: | 15808-VCB |
| Quantity: | 1 |

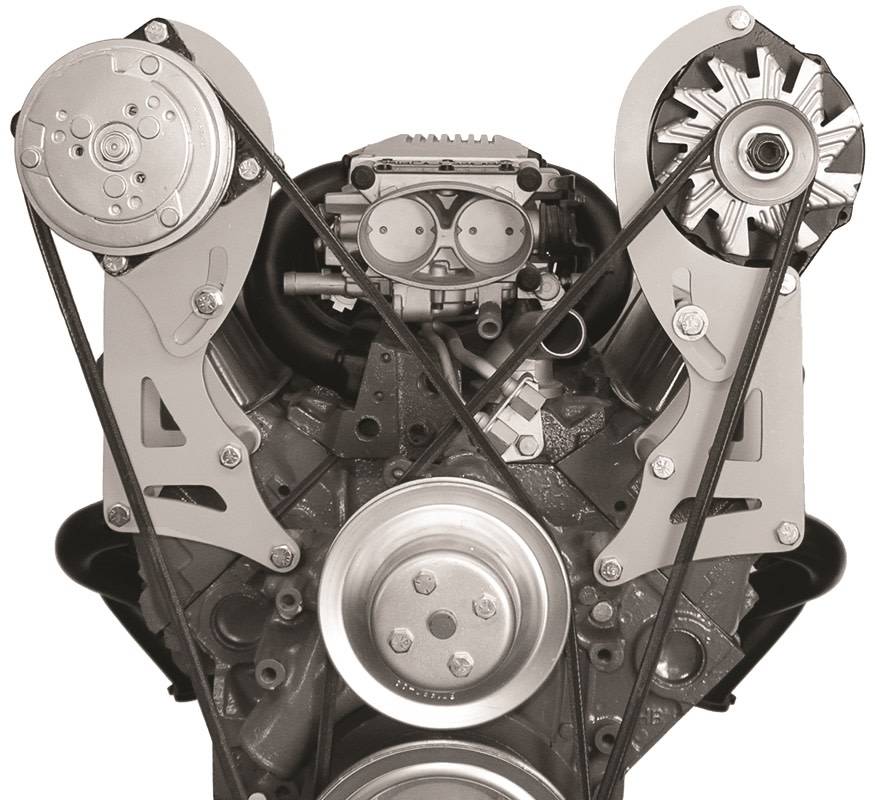

220L Alternator Bracket

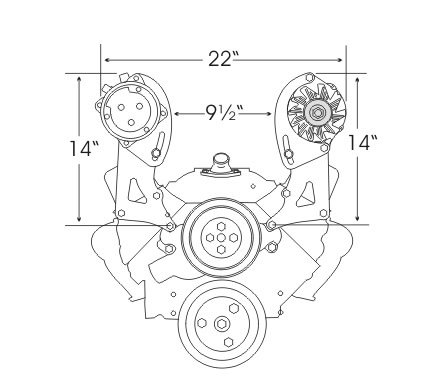

This bracket system is designed to clear valve covers up to 4 1/2 in. tall when used with 1986 or earlier heads. Bolts to the heads and water pump. When the A.C. Compressor bracket is used on heads with one bolt hole, they will require drilling and tapping one hole for the upper mounting point. Use as a stand alone alternator bracket or in conjunction with 120R A/C Compressor Bracket. Will not work with OEM power steering pump bracket. Use 402L Power Steering Bracket. Long water pump only.
Water Pump Identification/Technical Information
Alternator Identification/Technical Information
