Alan Grove Components - Alternator Bracket (CS130) - SBC - Low Mount - Short Water Pump - Driver - 209L

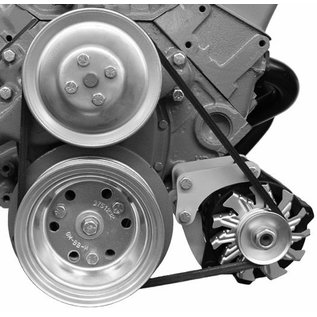

Bare steel bracket mounts GM CS130 alternator with mounting ears in the 6:00 and 2:00 position, low on the driver side of small block Chevy engines. Short water pump only.

Read more...
$88.00 Excl. tax
Delivery time: Typically Ships In 1 Business Day
Quantity: 2

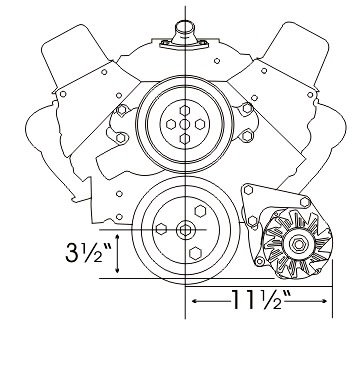

This bracket is deigned to use the smaller G.M. CS130 alternator with the mounting ears in the 6:00 and 2:00 position.. It requires less space than the standard G.M. 10si or 12si alternator. Check the dimension requirements before ordering. Short water pump only.

Installation Instructions

Water Pump Identification/Technical Information

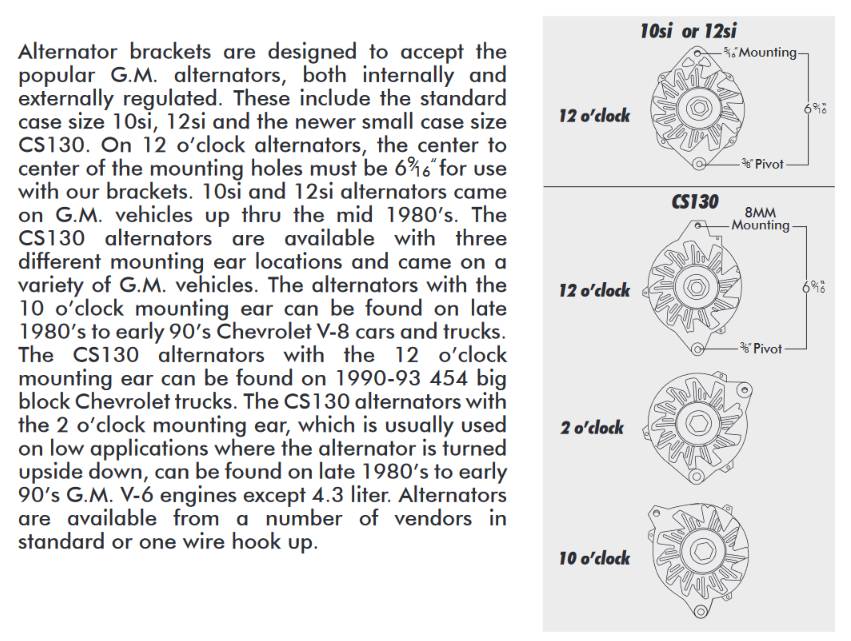

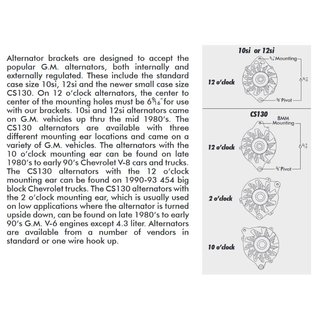

Alternator Identification/Technical Information

Pulley Technical Information

Belt Routing Technical Information
