Alt/PS Brackets - High Mount for Corvette Balancer - Type II - K10207

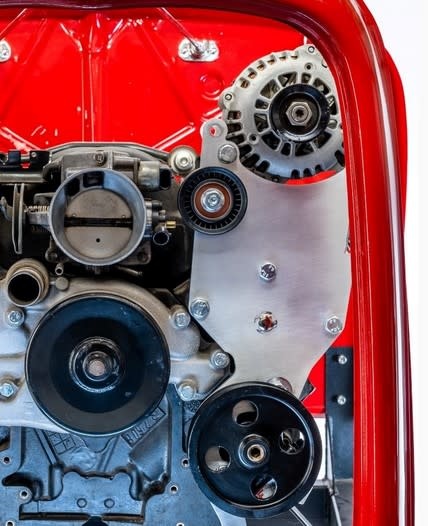

Narrow Street Rod Alt/PS relocation bracket system for LS engines with Corvette (1997-2013) crank pulley and water pump spacing.*

A perfect LS front serpentine solution for classic street rods and trucks (pre-1948).

This bracket system mounts the front accessories high and narrow for LS swap suitability.
This system can fit inside the hood sides of a 32 Ford!
Allows you to keep your Corvette balancer and water pump for maximum radiator clearance.
The Corvette crank/WP gives you the shortest LS configuration, allowing more room for electric fans.
The system is driven by one main 6-rib serpentine belt.

Dual bolt pattern for Alternator to fit:

  • Corvette Alternators (1997-2013)
  • Truck Alternators (1999-2013)
  • Camaro/GTO Alternators (1998-2002)
  • Camaro Alternators (2010-15)
  • DOES NOT fit Cadillac CTS-V / LSA Alternators

Power steering pump tucked and reclocked

  • Pump moved down and in for added frame / steering clearance
  • Pump clocked to give ease of access to pressure port

Multiple power steering pump options

  • Kwik Performance pump with 5.5” pulley: 10206-06
  • Corvette pump with 6.7” pulley*
    • Does not work with “through hole mounting”
  • Camaro/GTO (98-02) pump with 6” pulley*
    • *Pulley must be pulled off shaft +/- 1/8” to line up properly

Mounts Factory OEM PS remote reservoir conveniently above the PS pump (optional)

Exceeds OEM Corvette level of PS Pump belt wrap


What's included:

  • Bracket made of 6061-T6 aircraft grade aluminum (brushed satin finish)
  • All necessary spacers and zinc coated fasteners
  • Idler Pulley

What else is required to complete the installation:

  • GM LS Gen 3 or 4 engine with Corvette (1997-2013) harmonic balancer and water pump (or equivalent)*
  • Six-rib belt, See our included installation instructions for suggested lengths and Gates part numbers.
    • Alternator rating and PS pulley diameters can change suggested lengths.
    • Always check tensioner marks for correct fitment.
  • Any LS alternator (except LSA / Cadillac CTS-V)
  • Type 2 PS pump with threaded mounting holes
  • DOES NOT work with type 2 PS pump with through hole mounting style
    • Solution: Kwik Performance pump with 5.5” pulley: 10206-06
    • Can also use any type 2 PS pump with threaded mounting holes.
  • DOES NOT work with drive by wire throttle body (driver side mount)
    • Solution: Passenger side mount drive by wire throttle body (Corvette)
    • Solution: Top Mount drive by wire throttle body (truck)
    • Either of these will work with your Corvette harness and gas pedal Learn More

*Other engines with Corvette belt spacing include:

  • Most Chevrolet “crate” engines
  • Cadillac CTS-V (2006-07, non-supercharged)
  • Pontiac G8 (2009)
  • Chevrolet SS (2013-17)
  • Caprice PPV (2009-17)
  • Holden Commodore (2009-17)

Works with your OEM tensioner (mounted on water pump)

Why you should use a Kwik Performance product:

  • Properly engineered using OEM reference drawings
  • Computer tested with FEA (finite element analysis) software
  • Field tested on shop test engines and in real-world test vehicles
  • Backed by a no-hassle warranty and return policy
  • Tech support before, during and after the sale

How to determine which Chevy LS balancer you have
