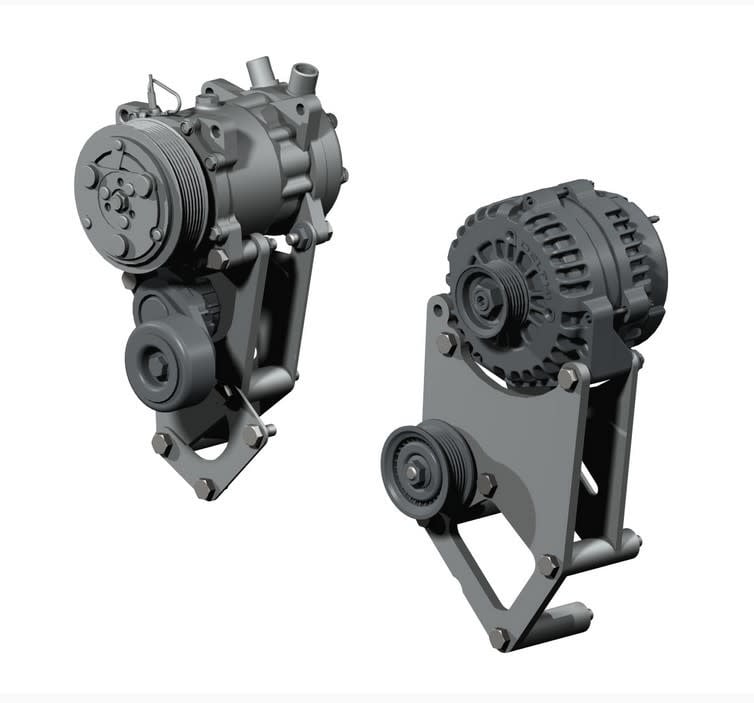

AC/Alt Bracket - High Mount for Truck/LS3 Camaro Balancer - 508/709 - K10237
Narrow Street Rod AC-Alt Only relocation bracket system for LS engines with Truck/SUV (1999-2013) and Camaro (2010-15) crank pulley and water pump spacing.
A perfect LS front serpentine solution for classic street rods and trucks (pre-1948).

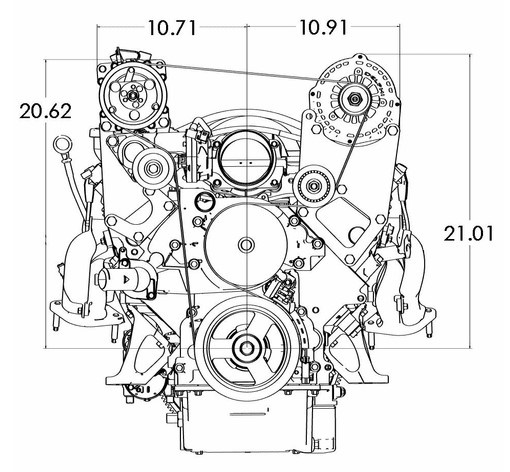

This bracket system mounts the front accessories high and narrow for LS swap suitability.
This system can fit inside the hood sides of a 32 Ford!
The system is driven by one main 6-rib serpentine belt.
Dual bolt pattern for Alternator to fit:
- Corvette Alternators (1997-2013)
- Truck Alternators (1999-2013)
- Camaro/GTO Alternators (1998-2002)
- Camaro Alternators (2010-15)
- DOES NOT fit Cadillac CTS-V / LSA Alternators
- Use of Camaro (2010-15) water pump (required) eliminates belt being “trapped” by upper radiator hose
What's included:
- Bracket made of 6061-T6 aircraft grade aluminum (brushed satin finish)
- All necessary spacers and zinc coated fasteners
- Automatic spring-style tensioner
- Idler Pulley
What else is required to complete the installation:
- GM LS Gen 3 or 4 engine with Truck/SUV (1999-2013) and Camaro (2010-15) harmonic balancer and water pump
- MUST USE Camaro (2010-15) water pump.
- Truck water pump upper outlet / radiator hose causes interference
- Six-rib belt, See our included installation instructions for suggested lengths and Gates part numbers.
- Alternator rating and PS pulley diameters can change suggested lengths.
- Always check tensioner marks for correct fitment.
- Sanden SD709 AC compressor (also known as SD7H15)
- We recommend the 709 over the 508 compressor for smoother operation and slightly more cooling capacity.
- Any LS alternator (except LSA / Cadillac CTS-V)
- DOES NOT work with drive by wire throttle body (side mount)
- Solution: Top Mount drive by wire throttle body (truck)
- This will work with your Camaro (2010-15) harness and gas pedal
Why you should use a Kwik Performance product:
- Properly engineered using OEM reference drawings
- Computer tested with FEA (finite element analysis) software
- Field tested on shop test engines and in real-world test vehicles
- Backed by a no-hassle warranty and return policy
- Tech support before, during and after the sale
