AC/Alt Bracket - High Mount for Corvette Balancer - 508/709 - K10235

Narrow Street Rod AC-Alt Only relocation bracket system for LS engines with Corvette (1997-2013) crank pulley and water pump spacing.*

A perfect LS front serpentine solution for classic street rods and trucks (pre-1948).

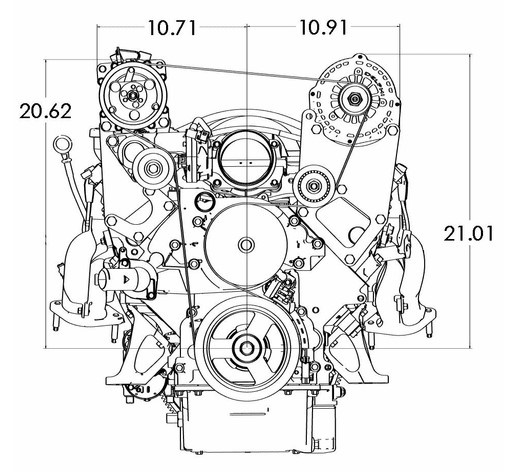

This bracket system mounts the front accessories high and narrow for LS swap suitability.
This system can fit inside the hood sides of a 32 Ford!
Allows you to keep your Corvette balancer and water pump for maximum radiator clearance.
The Corvette crank/WP gives you the shortest LS configuration, allowing more room for electric fans.
The system is driven by one main 6-rib serpentine belt.

Dual bolt pattern for Alternator to fit:
  • Corvette Alternators (1997-2013)
  • Truck Alternators (1999-2013)
  • Camaro/GTO Alternators (1998-2002)
  • Camaro Alternators (2010-15)
  • DOES NOT fit Cadillac CTS-V / LSA Alternators

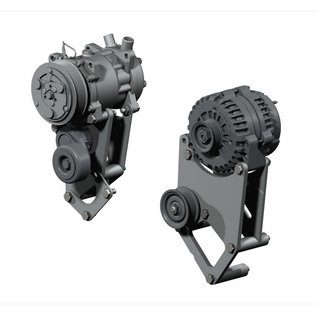

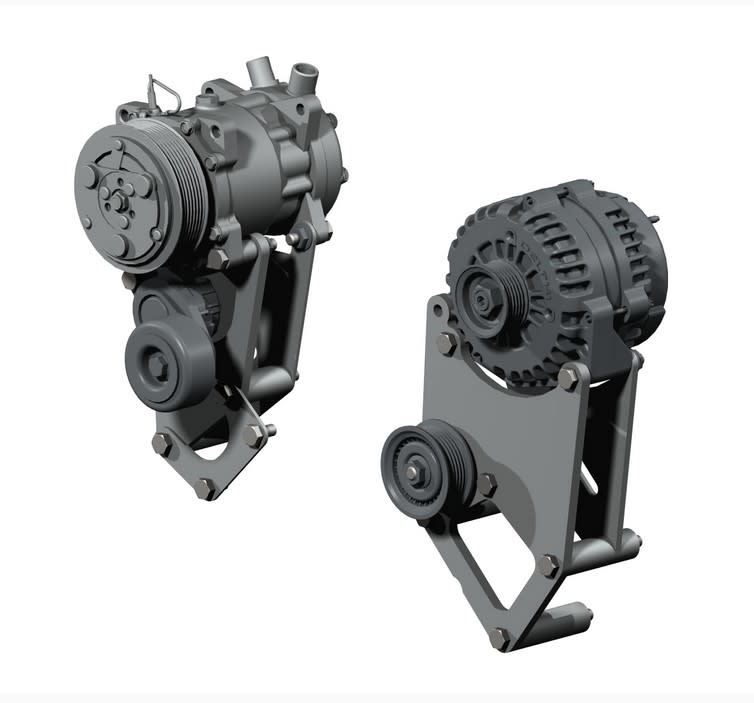

What's included:
  • Bracket made of 6061-T6 aircraft grade aluminum (brushed satin finish)
  • All necessary spacers and zinc coated fasteners
  • Automatic spring-style tensioner
  • Idler Pulley
What else is required to complete the installation:
  • GM LS Gen 3 or 4 engine with Corvette (1997-2013) harmonic balancer and water pump (or equivalent)*
  • Six-rib belt, See our included installation instructions for suggested lengths and Gates part numbers.
    • Alternator rating and PS pulley diameters can change suggested lengths.
    • Always check tensioner marks for correct fitment.
  • Sanden SD709 AC compressor
  • We recommend the 709 over the 508 compressor for smoother operation and slightly more cooling capacity.
  • Any LS alternator (except LSA / Cadillac CTS-V)
  • DOES NOT work with drive by wire throttle body (side mount)
    • Solution: Top Mount drive by wire throttle body (truck)
    • This will work with your Corvette harness and gas pedal
*Other engines with Corvette belt spacing include:
  • Most Chevrolet “crate” engines
  • Cadillac CTS-V (2006-07, non-supercharged)
  • Pontiac G8 (2009)
  • Chevrolet SS (2013-17)
  • Caprice PPV (2009-17)
  • Holden Commodore (2009-17)
Why you should use a Kwik Performance product:
  • Properly engineered using OEM reference drawings
  • Computer tested with FEA (finite element analysis) software
  • Field tested on shop test engines and in real-world test vehicles
  • Backed by a no-hassle warranty and return policy
  • Tech support before, during and after the sale
