Vintage Air - 1982-88 Grand Prix with Factory Air Gen 5 Magnum Max Complete Kit - 964417

Genuine Vintage Air 1982-88 Grand Prix with Factory Air Gen 5 Magnum Max Complete Kit - 964417

Vintage Air's 5th generation SureFit climate control systems are the most powerful and technologically advanced systems available today. They employ an exclusive, fully electronic microprocessor-controlled system that eliminates cables or vacuum connections. Separate, state-of-the-art, high-density aluminum heat exchangers pack the maximum possible performance and reliability within the confines of your dash.

Additional features include variable blower speed and dash/floor/defrost blend.

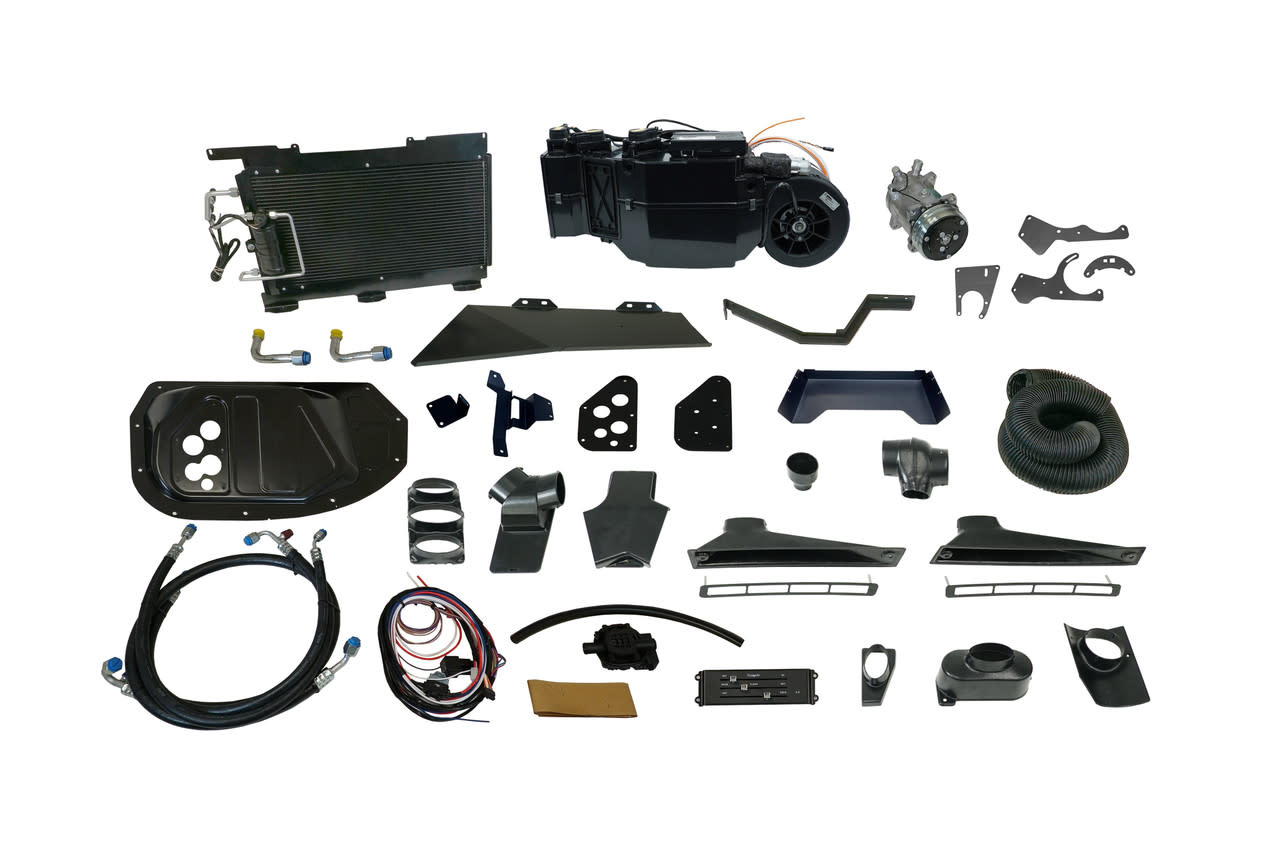

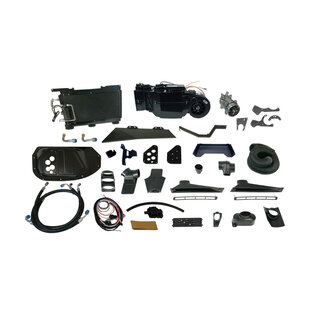

**This complete kit includes everything from the evaporator kit with Magnum Max blower, plus all under-hood components such as the compressor and bracket, condenser with brackets, preformed refrigerant lines, drier, fittings, hardware and detailed installation instructions.

• Engineered to cool your vehicle faster than ever
• Improved diagnostics and advanced systematic fail safes
• Multiple mounting options for an easier installation
• Rubber well-nut mounting points for improved NVH isolation
• Separate high-capacity A/C and heater coils with blend air door for rapid vent temperature adjustment
• OEM block-type expansion valve
• Injection molded case for optimal precision, strength and quality
• Injection molded blend air doors with integral rubber seals
• Removable access covers for coil service
• Interchangeable defrost and floor heat plenums for increased mounting flexibility
• Powder coated steel mounting brackets
• Stamped firewall cover assembly
• Quiet high-performance blower
• New electronic control panel included

(THE MAX WITH THE LARGER BLOWER REQUIRES THE FACTORY ENGINE COMPUTER TO BE RELOCATED BELOW THE EVAPORATOR ON PASSENGER SIDE - SEE INSTRUCTIONS)

Notes

1. Some installations may require additional engine pulleys not included with kits. You must provide pulleys, V-belts, heater hoses and refrigerant.
2. SureFit™ systems may interfere with some OEM radios or in-dash speakers.

Regulatory:  WARNING: California proposition 65

Instructions:  Installation Instructions
