Vintage Air - 1957 Chevy Gen5 SureFit Complete Kit - Deluxe Controls - Center Vent - 961556

Genuine Vintage Air 1957 Chevy Gen5 SureFit Complete Kit - Deluxe Controls - Center Vent - 961556

Vintage Air's 5th generation SureFit climate control systems are the most powerful and technologically advanced systems available today. They employ an exclusive, fully electronic microprocessor-controlled system that eliminates cables or vacuum connections. Separate, state-of-the-art, high-density aluminum heat exchangers pack the maximum possible performance and reliability within the confines of your dash.

Additional features include variable blower speed and dash/floor/defrost blend.

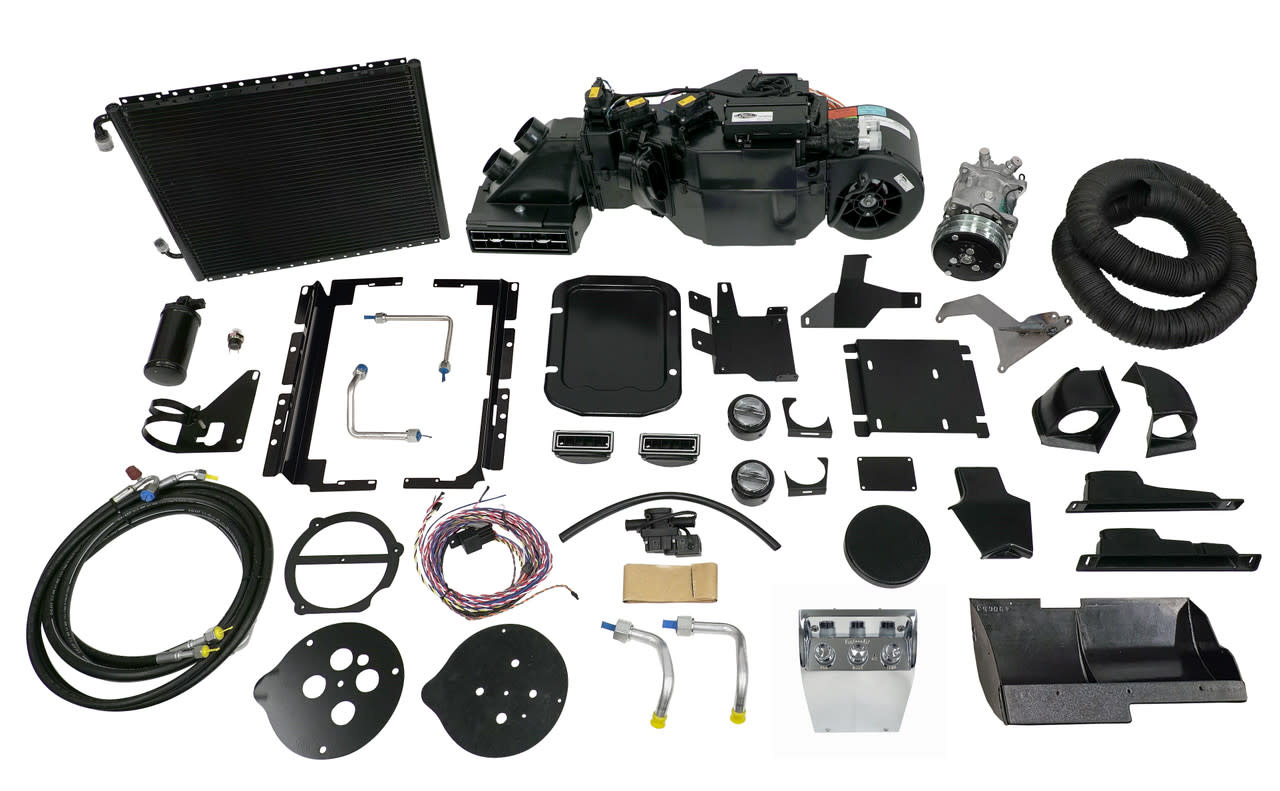

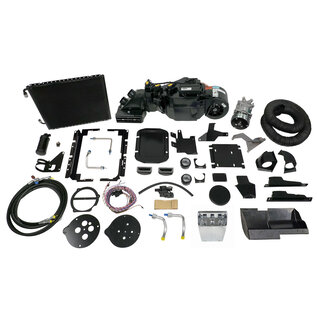

**This complete kit includes everything from the evaporator kit, plus all under-hood components such as the compressor and bracket, condenser with brackets, preformed refrigerant lines, drier, fittings, hardware, and detailed installation instructions.

• Engineered to cool your vehicle faster than ever
• Improved diagnostics and advanced systematic fail safes
• Multiple mounting options for an easier installation
• Rubber well-nut mounting points for improved NVH isolation
• Separate high-capacity A/C and heater coils with blend air door for rapid vent temperature adjustment
• OEM block-type expansion valve
• Injection molded case for optimal precision, strength and quality
• Injection molded blend air doors with integral rubber seals
• Removable access covers for coil service
• Interchangeable defrost and floor heat plenums for increased mounting flexibility
• Powder coated steel mounting brackets
• Quiet high-performance blower
• Includes new bolt-in electronic control panel
• Flat steel firewall cover

Application Note

This kit includes an integrated center vent and plenum for maximum air flow and ease of installation.

NOTES:
1. This kit requires an OEM, deluxe 4-lever control panel (Not included).
2. This kit is designed for the original firewall and dash.
3. Refrigerant lines are routed through the core support, and the drier mounts behind. These kits may be upgraded to include our popular polished ProLine compressor/alternator bracket.
4. If using a cross flow radiator, see Condenser Kit # 03455-VCC.
5. Some installations may require additional engine pulleys not included with kits. You must provide pulleys, V-belts, heater hoses and refrigerant.
6. When retaining the original 265 or 283 V8 engine, it may be necessary to upgrade the harmonic balancer and pulleys. You will also need to upgrade from the generator to an alternator.
7. SureFit™ systems may interfere with some OEM radios or in-dash speakers.

Regulatory:  WARNING: California proposition 65

Instructions:  Installation Instructions
