1957 Chevy Gen5 SureFit Complete Kit - Deluxe Controls - 4-Vent - 961557

Information

Genuine Vintage Air 1957 Chevy Gen5 SureFit Complete Kit - Deluxe Controls - 4-Vent - 961557

Vintage Air's 5th generation SureFit climate control systems are the most powerful and technologically advanced systems available today. They employ an exclusive, fully electronic microprocessor-controlled system that eliminates cables or vacuum connections. Separate, state-of-the-art, high-density aluminum heat exchangers pack the maximum possible performance and reliability within the confines of your dash.

Additional features include variable blower speed and dash/floor/defrost blend.

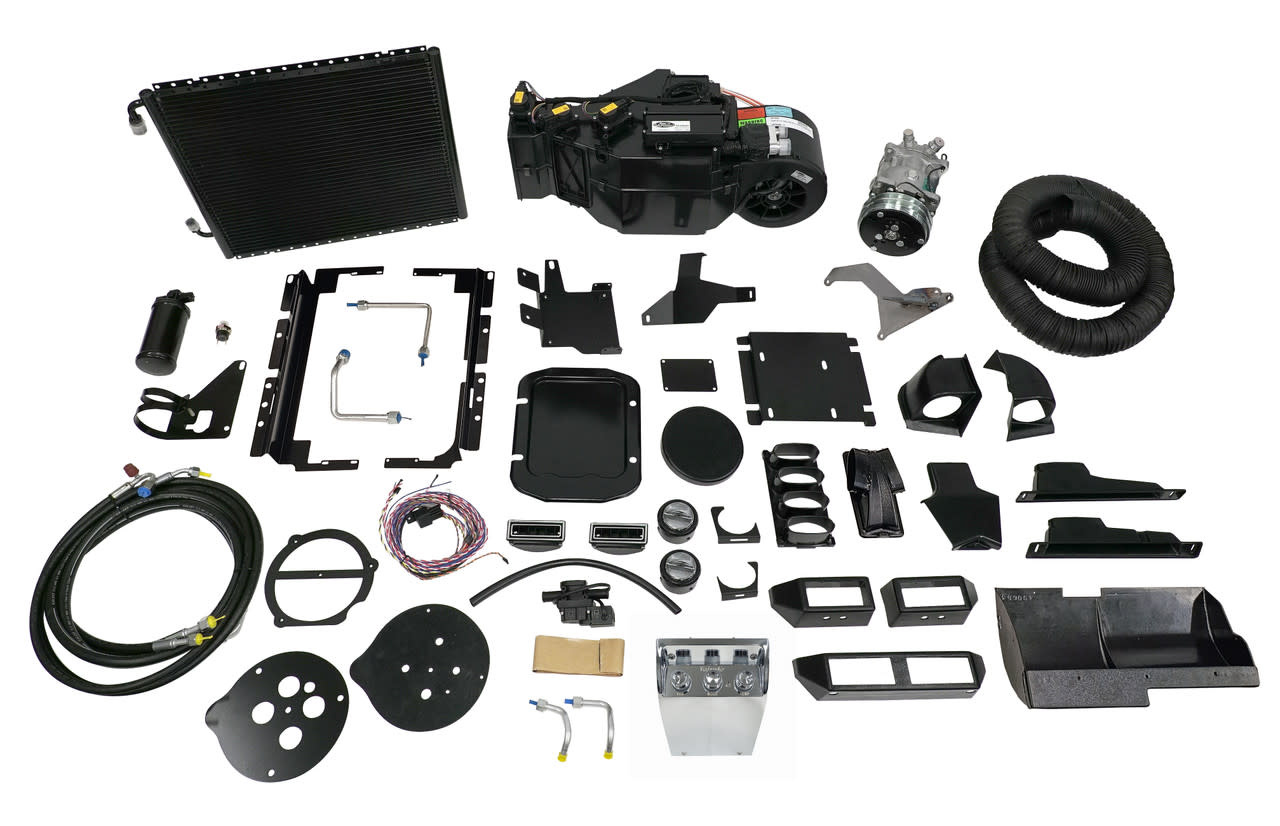

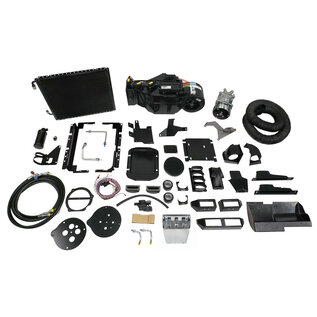

**This complete kit includes everything from the evaporator kit, plus all under-hood components such as the compressor and bracket, condenser with brackets, preformed refrigerant lines, drier, fittings, hardware, and detailed installation instructions.

Engineered to cool your vehicle faster than ever
Improved diagnostics and advanced systematic fail safes
Multiple mounting options for an easier installation
Rubber well-nut mounting points for improved NVH isolation
Separate high-capacity A/C and heater coils with blend air door for rapid vent temperature adjustment
OEM block-type expansion valve
Injection molded case for optimal precision, strength and quality
Injection molded blend air doors with integral rubber seals
Removable access covers for coil service
Interchangeable defrost and floor heat plenums for increased mounting flexibility
Powder coated steel mounting brackets
Quiet high-performance blower
Flat steel firewall cover
With no molded center vent, this kit allows the use of 4 individual louver locations.
Includes new bolt-in electronic control panel

NOTES:
1. This kit requires an OEM, deluxe 4-lever control panel (Not included).
2. This kit is designed for the original firewall and dash.
3. Refrigerant lines are routed through the core support, and the drier mounts behind. These kits may be upgraded to include our popular polished ProLine compressor/alternator bracket.
4. If using a cross flow radiator, see Condenser Kit # 03455-VCC.
5. Some installations may require additional engine pulleys not included with kits. You must provide pulleys, V-belts, heater hoses and refrigerant.
6. When retaining the original 265 or 283 V8 engine, it may be necessary to upgrade the harmonic balancer and pulleys. You will also need to upgrade from the generator to an alternator.
7. SureFit™ systems may interfere with some OEM radios or in-dash speakers.

Important Ordering Information: For complete kits, we may contact you to verify engine configuration to ensure we ship the correct compressor bracket. Please provide detailed engine configuration during checkout, in the shipping section, under "order notes."

Regulatory: WARNING: California proposition 65

Instructions: Installation Instructions
